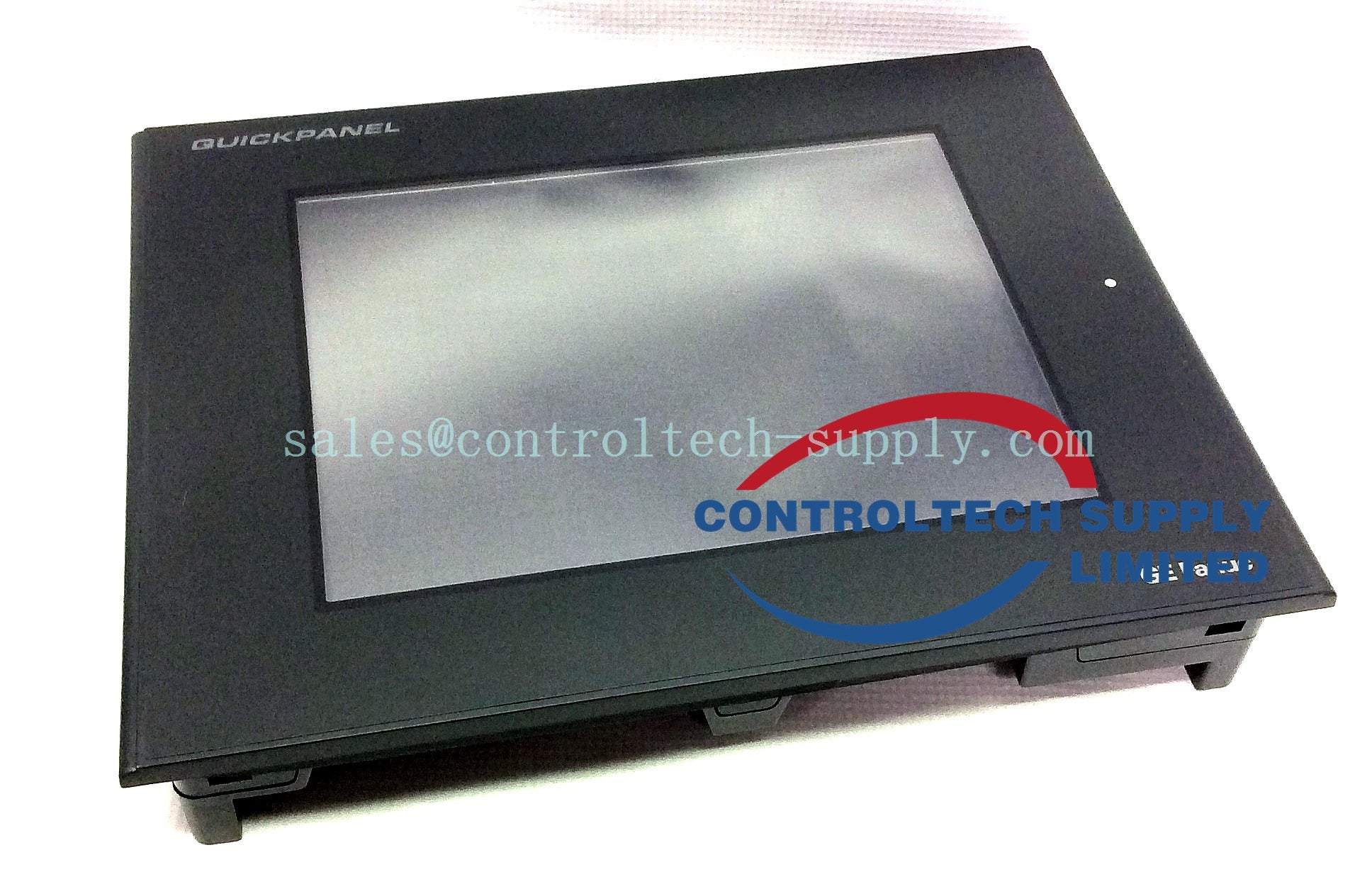

GE IC754VGI08CTD 8-Inch Color Touchscreen Human-Machine Interface (HMI)

GE IC754VGI08CTD 8-Inch Color Touchscreen Human-Machine Interface (HMI)

  • Manufacturer: GE FANUC

  • Product No.: IC754VGI08CTD

  • Product Type: Touchscreen

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

The GE IC754VGI08CTD is an 8-inch color touchscreen Human-Machine Interface (HMI) from the QuickPanel View series. It integrates a high-resolution display, processing power, memory, and multiple communication ports into a single, compact unit for industrial automation, enabling operators to monitor and control processes directly from the panel.

Technical Specifications

Specification Details
Display 8-inch color TFT touchscreen, VGA (640 × 480) resolution, resistive touch
Processor & OS Marvell XScale ARM core; runs Microsoft Windows Embedded Compact 7
Memory DRAM: 512 MB; Flash: 256 MB non-volatile; Battery-backed SRAM: 512 KB
Power Supply & Consumption Rated: 24 V DC (±20%); Input range: 12–30 V DC; Max power consumption: ~15 W
Communication Ports RS-232 and RS-485 serial, Ethernet 10/100 Mbps, USB (host/device), SD card slot, Line-Out and Mic-In audio
Physical Dimensions 192 × 137 × 36 mm (7.56 × 5.39 × 1.42 in); Panel cutout: 183.5 × 128.5 mm (7.22 × 5.06 in)
Weight Approx. 1.76 lb (0.8 kg); shipping weight ~6 lb
Environmental Conditions Operating: 0 °C to 50 °C (32 °F to 122 °F); Storage: –20 °C to +60 °C (–4 °F to 140 °F)
Mounting & Installation Panel-mount with VESA 75 × 75 mm; ensure proper ventilation and avoid dust and direct sunlight
