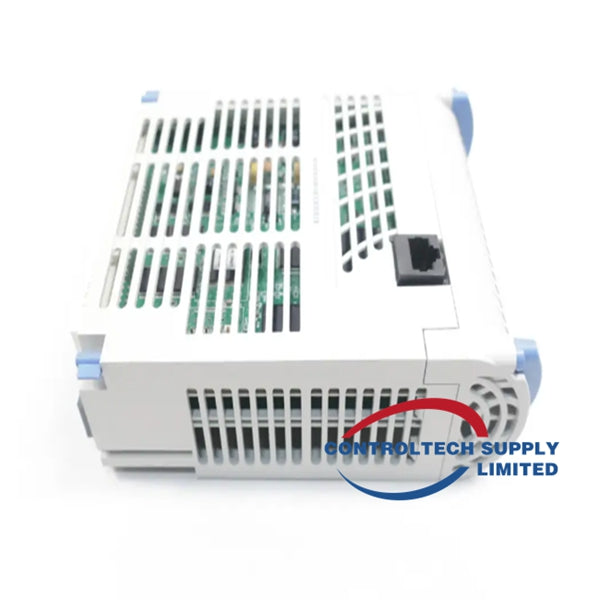

OVATION 5X00070G01 Analog Input Module
OVATION 5X00070G01 Analog Input Module
Manufacturer: OVATION
Product No.: 5X00070G01
Product Type: Analog Input Module
Product Origin: Germany
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The OVATION 5X00070G01 is a high-speed 4-20 mA analog input module for Emerson/Westinghouse Ovation DCS. It accepts standard current signals, converts them to digital format with good resolution, supports multiple isolated input channels, and works over a wide environmental range. It is used in process control / data acquisition applications where reliable, precise analog measurements are needed.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 5X00070G01 |
| Input Signal Range | 4-20 mA |
| Number of Channels | 8 individually isolated channels |
| Resolution | 14 bits |
| Sampling Rate | 50-60 samples/sec |
| Isolation | Each channel is isolated from the others |
| Surge Protection | Integrated on input circuits |
| Power Supply | +24 V DC nominal |
| Power Consumption | ~ 5 W |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 0-95 %, non-condensing |
| Physical Dimensions | Width ~ 178 mm; Height ~ 90 mm; Depth ~ 100 mm |
| Weight | ~ 0.5 kg |
