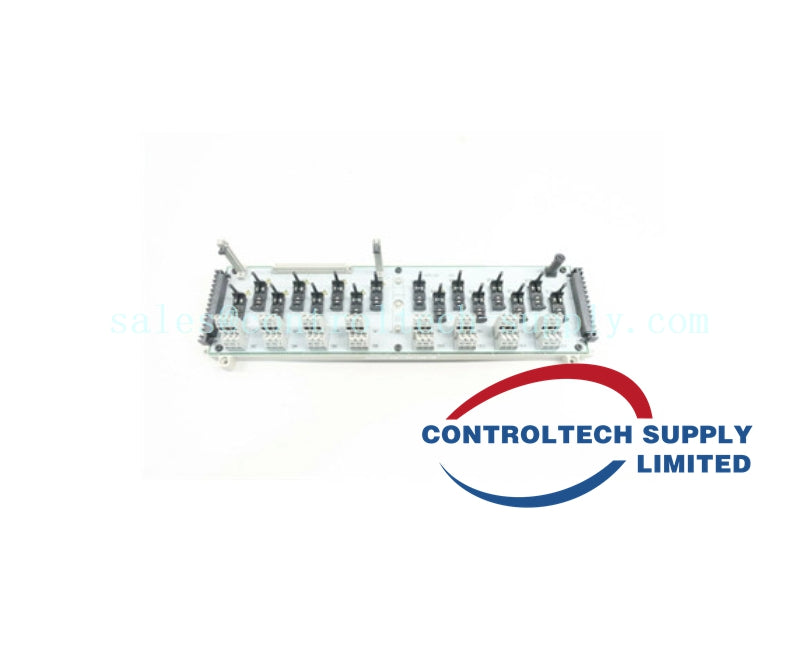

OVATION 1C31223G01 Relay Output Base Assembly
OVATION 1C31223G01 Relay Output Base Assembly
Manufacturer: OVATION
Product No.: 1C31223G01
Product Type: Relay Output Base Assembly
Product Origin: Germany
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The OVATION 1C31223G01 is a relay output base assembly (G2R style) used in Emerson / Westinghouse Ovation Distributed Control Systems. It is designed to host 16 electromechanical relays (Form C contacts) for switching AC or DC loads. It interfaces with a relay output electronics module that handles the coil drive, logic, and field wiring via terminal blocks. The base assembly is rugged, DIN-rail mountable, and meets industrial environmental and safety standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1C31223G01 |
| Relay Count | 16 relays |
| Relay Type | G2R electromechanical relays with 1 Form C contact per relay |
| Contact Ratings | 10 A @ 250 VAC (PF=1) 10 A @ 30 VDC |
| Operate Time (typical) | ~ 15 ms (excluding contact bounce) |
| Release Time (typical) | ~ 10 ms (excluding bounce) |
| Propagation Time (including bounce) | Bounce ~ 3 ms when operating; release bounce ~ 8 ms |
| Dielectric Isolation | Relay contacts to logic: ~ 2300 V AC/DC |
| Auxiliary Power Consumption (Base) | Typical: ~ 9.1 W Maximum: ~ 11.68 W |
| Auxiliary Supply Voltage | ~ 25 V (typical) (before any diode drops) Maximum ~ 25.5 V |
| Operating Temperature Range | 0 to +60 °C |
| Storage Temperature Range | −40 to +70 °C |
| Humidity | Non-condensing, ~ 35-85 % RH |
| Relay Output Module (Electronics) | Uses separate module: 1C31219G01 (interfaces logic → relays) |
| Mounting | DIN rail compatible |
| Compliance | CE mark certified |
| Physical Dimensions | (Varies depending on configuration) |
