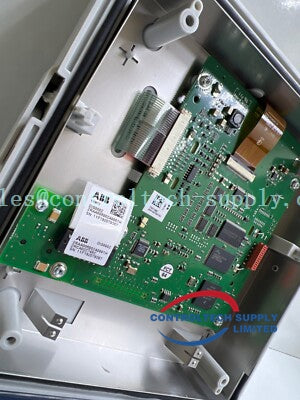

ABB DIS0002 2RAA005802A0001H LHMI Module
ABB DIS0002 2RAA005802A0001H LHMI Module
Manufacturer: ABB
Product No.: DIS0002 2RAA005802A0001H
Product Type: LHMI Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB DIS0002 2RAA005802A0001H is a Local Human-Machine Interface (LHMI) module designed for ABB 615 series protection and control relays. It provides a user-friendly graphical display and local control functions, enabling configuration, monitoring, event logging, and diagnostics. The module ensures intuitive interaction with relay systems, supporting efficient and secure operation in substation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 7-inch color display, 24-bit graphics, touch-enabled (resistive/capacitive) |
| Processor & Memory | Embedded ARM-based CPU with integrated RAM and flash storage, real-time OS |
| Interfaces | Ethernet 10/100 Mbps, RS-232, RS-485, USB 2.0 |
| Dimensions | Approx. 178 mm × 51 mm × 305 mm |
| Weight | Approx. 0.42 kg |
| Mounting Method | Panel or DIN-rail; front panel IP65 protection |
| Operating Temp. | –10 °C to +50 °C |
| Storage Temp. | –20 °C to +60 °C |
| Humidity | 5 % to 95 % RH, non-condensing |
| Certifications | CE, UL, CSA, IEC 61131 |
| Functional Features | Alarm management, event logging, trend analysis, role-based access control |
| Energy Storage | Not equipped with internal batteries or large capacitors |
| Component Details | Includes display, CPU board, communication ports, and protective casing |
