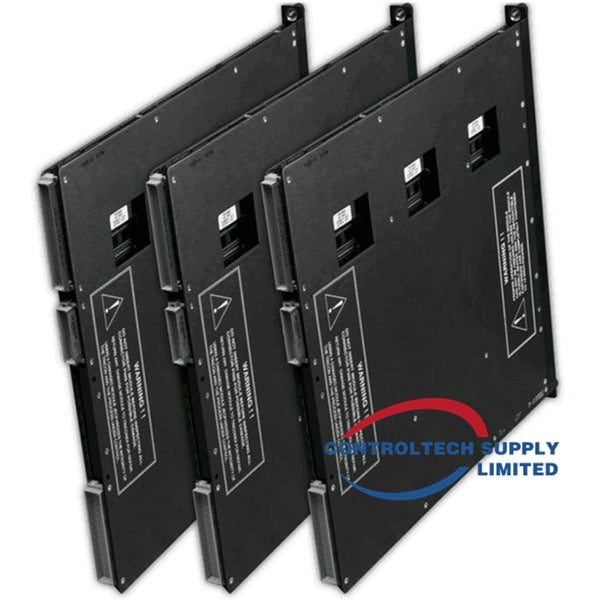

TRICONEX 8110N2 Digital Output Module

Product Description

• The TRICONEX 8110N2 is a digital output module designed for use in Triconex safety and critical control systems.

• It provides reliable and fault-tolerant switching of field devices such as solenoids, relays, and indicators.

• The module is engineered for use in Safety Instrumented Systems (SIS) with SIL3 compliance, ensuring continuous and secure operation in demanding industrial environments.

Technical Specifications

• Output Type: Digital (discrete) outputs

• Number of Channels: 32 isolated output channels

• Output Signal Type: 24 V DC nominal

• Output Current Capacity: 0.5 A per channel maximum

• Isolation: 2500 V RMS channel-to-backplane isolation

• Response Time: Less than 10 ms

• Redundancy: Compatible with Triple Modular Redundancy (TMR) architecture

• Diagnostics: Per-channel status monitoring and fault detection

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +85°C

• Power Consumption: 8 W typical

• Dimensions: 266 mm (H) × 32 mm (W) × 195 mm (D)

• Weight: 0.8 kg

• Compliance: IEC 61508 SIL3, TÜV-certified

• Mounting: Installs into standard Tricon I/O chassis slots
