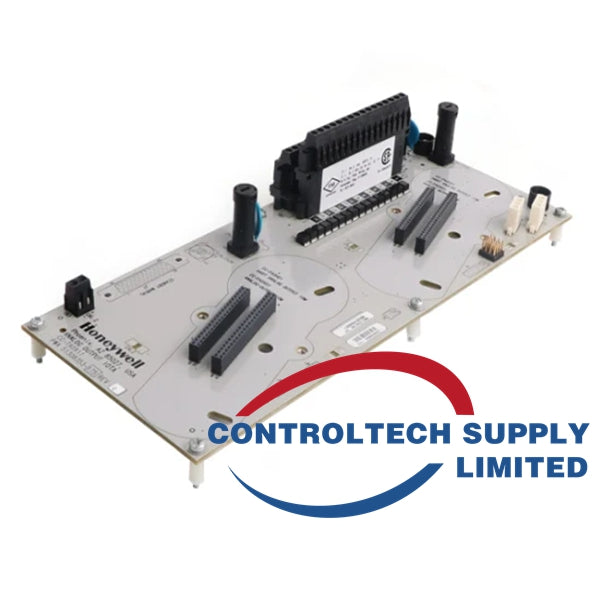

Honeywell CC-TAIN01 Analog Input Module IOTA
Honeywell CC-TAIN01 Analog Input Module IOTA
Manufacturer: HONEYWELL
Product No.: CC-TAIN01
Product Type: Analog Input Module IOTA
Product Origin: USA
Payment: T/T
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Honeywell CC-TAIN01 is a Series-C Analog Input IOTA (Input/Output Termination Assembly) used in Honeywell Experion PKS and C300 distributed control systems. It provides the field termination and signal conditioning interface between 4–20 mA field transmitters and the Series-C analog input electronics. The module is designed for non-redundant installations and ensures high-accuracy signal acquisition, noise immunity, and reliable operation in harsh industrial environments. Integrated protection and diagnostics help maintain stable and accurate process measurements for critical control applications.
| Parameter | Specification |
|---|---|
| Product Type | Analog Input IOTA (non-redundant) |
| I/O System | Honeywell Series-C I/O (C300, Experion PKS) |
| Number of Channels | 16 single-ended analog input channels |
| Supported Signal Type | 4–20 mA current input |
| Input Range | 4–20 mA |
| A/D Resolution | 16-bit |
| Input Scan Rate | 50 ms per channel |
| Hardware Accuracy | ±0.075 % of full scale at 25 °C; ±0.15 % of full scale over 0–60 °C |
| Input Impedance | 200 Ω (typical) |
| Common Mode Rejection (CMRR) | 70 dB (DC to 60 Hz, 500 Ω imbalance) |
| Normal Mode Rejection (NMRR) | 20 dB at 60 Hz |
| Normal Mode Filter | Single-pole RC, –3 dB at 6 Hz |
| Maximum Input Voltage | ±30 V (no damage) |
| Channel-to-Channel Crosstalk | –60 dB (DC to 60 Hz) |
| Field Power Protection | Individually current-limited and protected |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Mounting | Plug-in IOTA for control cabinet installation |
| Weight (approx.) | 0.32 kg |
