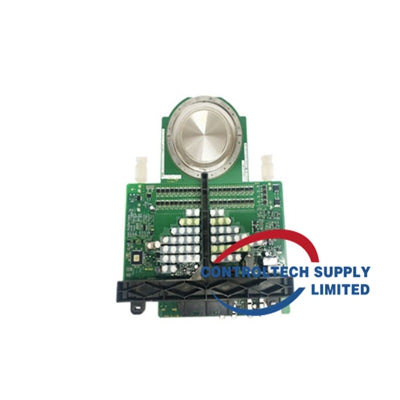

ABB 3BHE014105R0001 5SHY3545L0020 5SXE05-0154 IGCT

Description

• Product Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT)

• Manufacturer: ABB

• Part Number: 3BHE014105R0001

• IGCT Type: 5SHY3545L0020

• Gate Unit: 5SXE05-0154

• Function: High-power semiconductor switch used in medium voltage drives and power converters

Key Technical Specifications

• IGCT Voltage Rating: 4500 V (asymmetric)

• IGCT Current Rating: 3545 A (rms), 4500 A (peak)

• Gate Drive Unit Voltage Supply: Typically 24 VDC

• Switching Frequency: Up to a few kHz, depending on cooling and system design

• Typical Applications:

• Medium-voltage AC drives

• Traction converters

• Static VAR compensators

• High-power inverters

• Cooling Type: Typically liquid or forced-air cooling required

• Module Configuration:

• IGCT 5SHY3545L0020 integrated with gate unit 5SXE05-0154

• Delivered as a matched assembly to ensure optimal performance

• Insulation Coordination: Designed for use in equipment requiring high insulation strength and surge immunity

Features

• High Reliability: Robust for demanding industrial and utility applications

• Fast Switching: Reduces power loss and enhances efficiency

• Compact Design: Saves space in control panels and converter cabinets

• Built-in Protection: Integrated with gate unit for fault detection and safe operation
