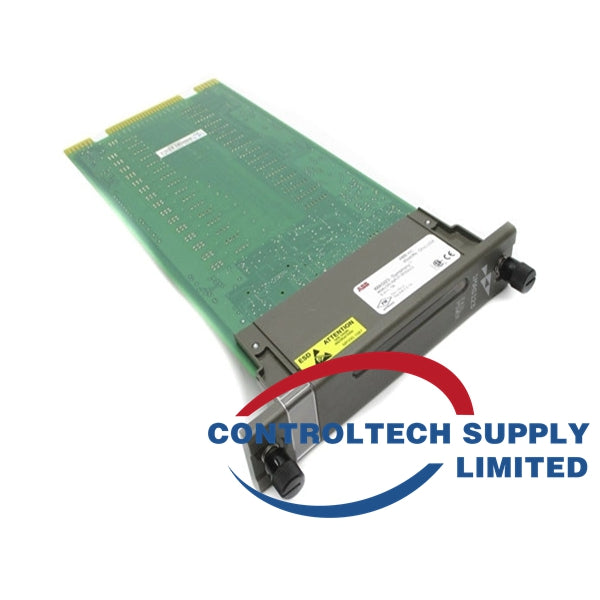

ABB 1KHW000615R0001 Analog Input Module

Product Description

The ABB 1KHW000615R0001 Analog Input Module is part of the AC800F series, designed for industrial automation applications. It serves as a central processing unit for handling analog input signals, ensuring precise data acquisition and processing.

Technical Specifications

• Model Number: 1KHW000615R0001

• Series: AC800F

• Application: Industrial automation

• Country of Origin: Sweden

• Weight: 0.52 kg

• Estimated Shipping Size: 10.8 cm x 5.5 cm x 12 cm

• Process Supply Voltage: 24 V DC

• Current Consumption: 0.04 A

• Inrush Current (at power-up): 0.05 A²s

• Max. Ripple: 5%

• Protection Against Reversed Voltage: Yes

• Max. Power Dissipation: 1.1 W

• Number of Channels per Module: 2 configurable RTD (Resistance Temperature Detector) inputs

• Resolution: ±0.1 °C / 0.1 °F

• Input Type: Module ground-referenced RTD for 2-wire and 3-wire resistance temperature detectors

• Input Ranges: Pt100, Pt1000, Ni100, Ni1000

• Surge Voltage (max.): 35 V DC for 0.5 s

• Module Update Time: < 1 s

• Channel Input Resistance: 100 kΩ
