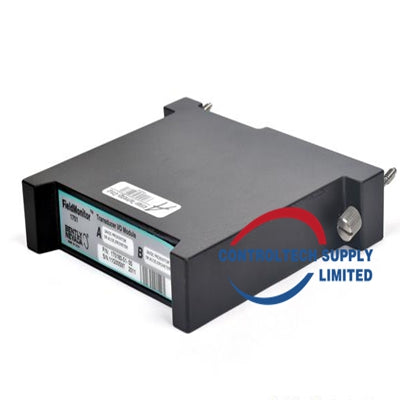

Bently Nevada 3701/40 105M6001-01 Positive Input (PoV) Module
Bently Nevada 3701/40 105M6001-01 Positive Input (PoV) Module
Manufacturer: Bently Nevada
Product No.: 3701/40 105M6001-01
Product Type: Positive Input (PoV) Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
-
The 105M6001-01 PoV Module is an input module designed for the Bently Nevada 3701/40 ADAPT Machinery Dynamics Monitor.
-
It interfaces with positively powered sensors such as +24 V Proximitor sensors, +24 V interface modules, and 2-wire IEPE sensors.
-
It provides up to six dynamic input channels plus one Keyphasor/speed channel for comprehensive machinery monitoring.
-
This module is ideal for measuring vibration, thrust, dynamic pressure, radial vibration and speed signals in rotating machinery applications.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Number of dynamic sensor input channels (channels 1-6) | 6 channels configurable for sensors such as acceleration, velocity, radial vibration, thrust position, dynamic pressure |
| Keyphasor / Speed input channel (Channel 7) | 1 channel for Keyphasor or speed; supports Proximitor sensors or magnetic pick-ups |
| Supported sensor / signal types | +24 V Proximitor sensors; +24 V interface modules; 2-wire IEPE sensors with ~3.3 mA constant current; acceleration; dynamic pressure; radial vibration; thrust position; velocity; magnetic speed pick-ups |
| A/D conversion / dynamic performance | 24-bit A/D; synchronized sampling across all channels; dynamic range about 110 dB; bandwidth up to 40 kHz |
| Environmental / Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 0-95 % non-condensing |
| Vibration resistance | 5 g, 57-500 Hz |
| Shock resistance | 15 g, 11 ms |
| Compatibility / Systems | Designed for Bently Nevada 3701 ADAPT series; integrates with ADAPT terminal base and system power |
