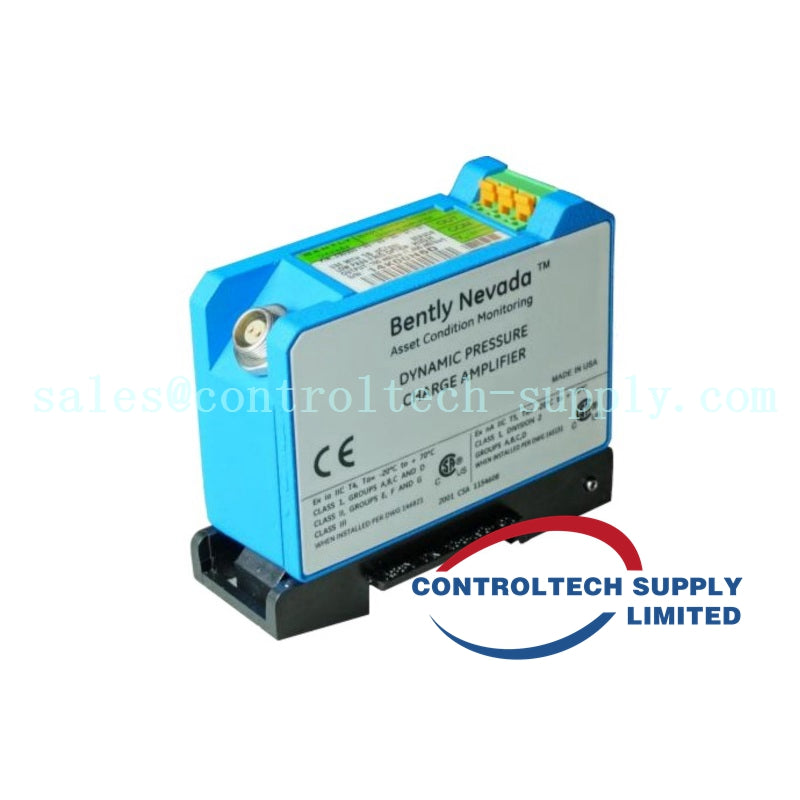

Bently Nevada 350500-00-00-00-01-01 Dynamic Pressure Charge Amplifier
Bently Nevada 350500-00-00-00-01-01 Dynamic Pressure Charge Amplifier
Manufacturer: Bently Nevada
Product No.: 350500-00-00-00-01-01
Product Type: Dynamic Pressure Charge Amplifier
Product Origin: USA
Payment: T/T
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months
Description
-
Piezoelectric pressure transducer for industrial applications
-
Provides accurate dynamic pressure measurement
-
Compact and lightweight design: 246 grams (8.7 oz)
-
Mounting options: panel mount and 35 mm DIN rail mount
-
Power/Signal connection via three-conductor SpringLoc terminal strip
-
Accepts wire sizes 0.2 mm² to 1.5 mm² (16–24 AWG) without ferrules
-
Accepts wire sizes 0.25 mm² to 0.75 mm² (18–23 AWG) with ferrules
-
Recommended field wiring: three-conductor shielded triad
-
Maximum length: 305 meters (1000 feet) between charge amplifier and monitor
-
Operating temperature: -20°C to +70°C (-4°F to +158°F)
-
Storage temperature: -40°C to +85°C (-40°F to +185°F)
-
Humidity (operating & storage): 0% to 95% relative, non-condensing
Physical Specifications
-
Weight: 246 grams (8.7 oz)
-
Mounting: Panel mount and 35 mm DIN rail mount
-
Dimensions: See Figures 3 and 4
Ordering Information
| Option | Description | Code |
|---|---|---|
| A: Input Sensitivity Option | 16 pC/psi (232 pC/bar) | 00 |
| B: Low Pass Frequency Option | High | 00 |
| C: Output Sensitivity Option | 100 mV/psi (1.45 V/bar) | 00 |
| D: Mounting Option | 35 mm DIN Mount with LEMO Connector | 01 |
| E: Approvals | CSA/NRTL Class 1 Div 2, Groups A,B,C,D | 01 |
