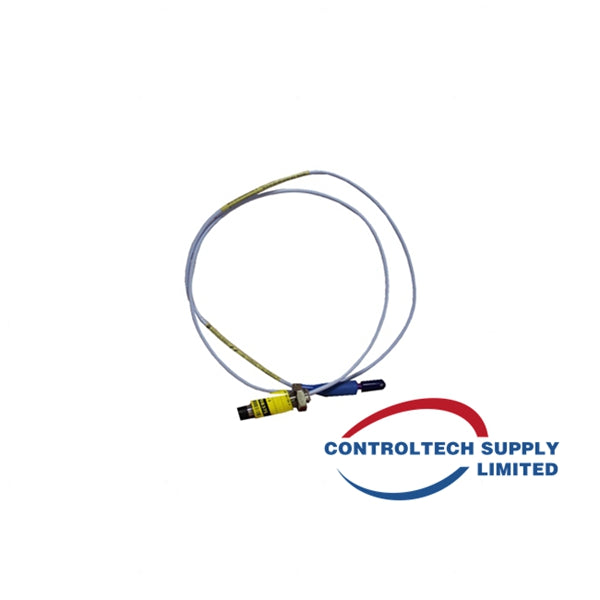

Bently Nevada 330145-14 8 mm Eddy-Current Proximity Probe
Bently Nevada 330145-14 8 mm Eddy-Current Proximity Probe
Manufacturer: Bently Nevada
Product No.: 330145-14
Product Type: Eddy-Current Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Bently Nevada 330145-14 is an 8 mm eddy-current proximity probe belonging to the 3300 XL series. It is designed for non-contact measurement of shaft vibration and position in rotating machinery such as turbines, compressors and motors. The probe offers high temperature tolerance, robust construction and stable performance in harsh industrial environments. It is typically used in machinery protection and condition monitoring systems where API 670 compliance is required.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Series / Type | 3300 XL | Compatible with 3300 XL system |
| Probe Tip Diameter | 8 mm | Non-contact eddy current sensor |
| Cable Length | Typically 5 m (other lengths available) | Connects to Proximitor® sensor |
| Housing Material | Stainless steel (AISI 303/304) | Corrosion-resistant and durable |
| Tip Material | PPS (polyphenylene sulfide) | High temperature and insulation |
| Cable Insulation | FEP (fluoropolymer) | Excellent temperature and chemical resistance |
| Operating Temperature | –51 °C to +177 °C (–60 °F to +350 °F) | Standard temperature range |
| Linear Measurement Range | 2 mm to 5 mm typical | Probe-to-target distance |
| Mounting Thread | 1/4–28 UNF or M8 × 1 | Multiple mounting options |
| Output Compatibility | Works with 3300 XL Proximitor® sensor | Part of complete transducer system |
| DC Resistance (Probe Body) | Approximately 7–10 Ω depending on cable length | Electrical characteristics |
| Power Supply (System) | –17.5 Vdc to –26 Vdc | System operating voltage |
| Output Impedance | 50 Ω | Standard output impedance |
| Sensitivity to Supply Variation | < 2 mV per volt of supply change | Stable output under supply fluctuations |
| Connector | ClickLoc™ locking connector | Quick, secure connection |
| Extended Temperature Version | Available up to about 260 °C | Optional ETR version |
| Standards Compliance | API 670 (Fourth Edition) | For critical machinery monitoring |
