Bently Nevada
Bajo stock: 100 restantes

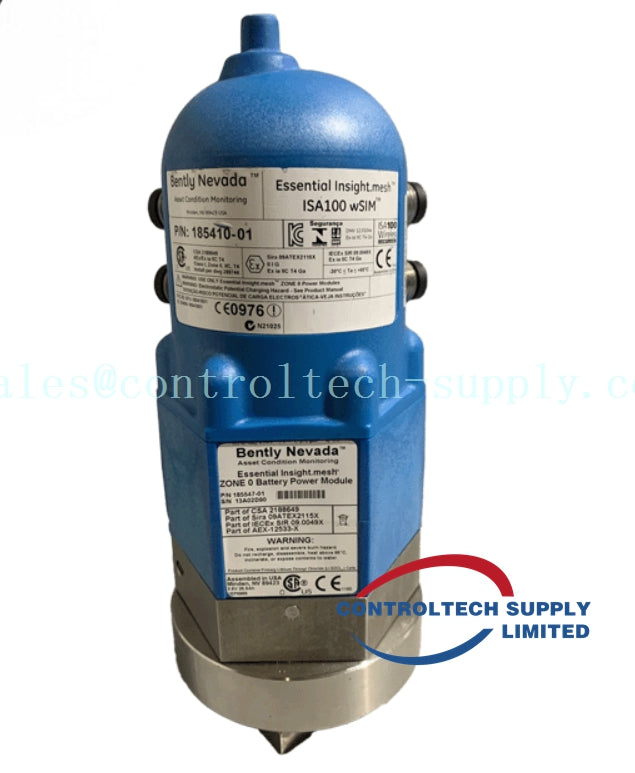

Bently Nevada 185410‑01 Wireless Sensor Interface Module
Bently Nevada 185410‑01 Wireless Sensor Interface Module
Manufacturer: Bently Nevada
Product No.: 185410‑01
Product Type: Wireless Sensor Interface Module
Product Origin: USA
Payment: T/T
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Bently Nevada 185410‑01 Wireless Sensor Interface Module (wSIM) is a component of the Essential Insight.mesh™ wireless monitoring system. It facilitates the wireless acquisition of vibration and temperature data from industrial machinery, enabling real-time monitoring and diagnostics. This module is designed to operate within ISA100.11a wireless mesh networks, providing a scalable and reliable solution for condition monitoring in various industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 185410‑01 |
| Product Type | Wireless Sensor Interface Module (wSIM) |
| Wireless Protocol | ISA100.11a (IEC 62734 compliant) |
| Frequency Band | 2.4 GHz ISM |
| Transmit Power | +20 dBm (100 mW max) |
| Receiver Sensitivity | –100 dBm typical |
| Coverage Range | Up to 200 m line-of-sight; ~30 m indoors |
| Data Rate | 250 kbps PHY; mesh packets up to 40 kbps |
| Network Capacity | Supports up to 100 sensor nodes per gateway |
| Power Input | 24 V DC ±10% @ 100 mA |
| Power Consumption | ≤ 2.5 W peak |
| Mounting Options | DIN rail, panel, or enclosure |
| Operating Temperature | −30 °C to +65 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | Up to 95%, non-condensing |
| Environmental Rating | IP30 standard; IP65 option available |
| Dimensions | 16 cm × 16 cm × 12 cm |
| Weight | 0.8 kg |
| Warranty | 12 months |
