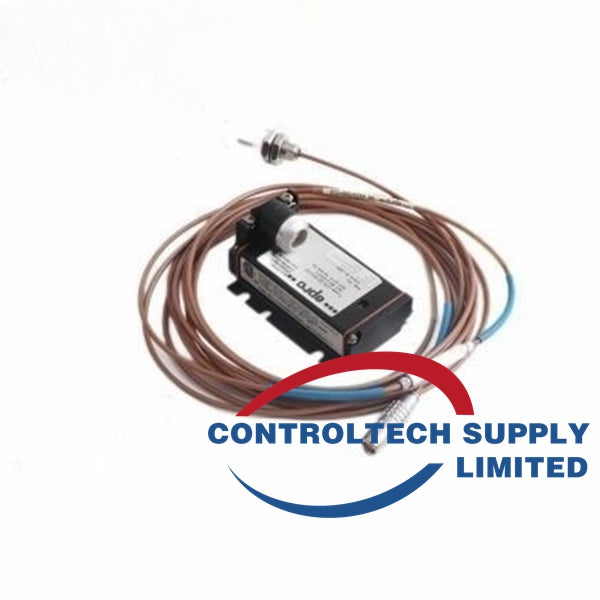

EPRO CON021 + PR6423/01B-030-CN Eddy Current Measurement System
EPRO CON021 + PR6423/01B-030-CN Eddy Current Measurement System
Manufacturer: EPRO
Product No.: CON021 + PR6423/01B-030-CN
Product Type: Eddy Current Measurement System
Product Origin: Germany
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The EPRO CON021 + PR6423/01B-030-CN is a precision eddy current measurement system designed for high-integrity monitoring of rotating machinery in industrial environments. It combines the fast-response CON021 signal converter with the rugged PR6423/01B-030-CN eddy current proximity probe to provide accurate, non-contact measurement of shaft displacement, vibration, and eccentricity in turbines, compressors, pumps, and other critical turbomachinery. Built for harsh conditions, this system delivers stable and reliable performance for condition monitoring, protection, and predictive maintenance applications.
Technical Specifications
| Specification | Description |
|---|---|
| Sensor Model | PR6423/01B-030-CN |
| Converter Model | CON021 |
| Measurement Principle | Eddy current (non-contact displacement) |
| Probe Diameter | 8 mm |
| Cable Length | 3 m integrated cable |
| Linear Measurement Range | ±2 mm (80 mils) |
| Initial Gap Setting | 0.5 mm (20 mils) |
| Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% |
| Linearity (DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79 in) |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140) |
| Sensor Operating Temp. | -35°C to +180°C |
| Sensor Storage Temp. | -40°C to +200°C |
| Sensor Protection Class | IP66 |
| Converter Frequency Response | 0–20,000 Hz (-3 dB) |
| Converter Rise Time | <15 µs |
| Converter Operating Temp. | -30°C to +100°C |
| Converter Shock & Vibration | 5 g @ 60 Hz |
| Converter Protection Class | IP20 |
| Supply Voltage (Converter) | -21 V to -32 V DC |
| Converter Housing Material | LMgSi 0.5 F22 |
| Converter Weight | 120 g |
| Sensor Weight | 0.22 kg |
