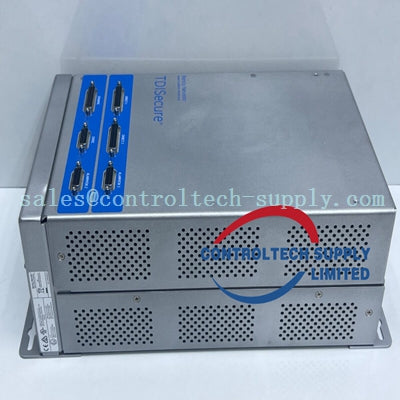

BENTLY NEVADA AC Power Input 2155/40-01

Description

TDISecure with AC power input (Model: 2155/40-01) is a high-performance industrial data acquisition unit designed for use with vibration monitoring systems. It is equipped to process signals from up to 24 dynamic analog input channels, typically sourced from buffered transducer outputs. The system ensures accurate and reliable monitoring with wide signal and frequency ranges. It operates efficiently on global AC power standards and is built to deliver dependable performance across a variety of industrial environments.

Specifications

• Power Input: 100~240 VAC, 50/60 Hz, 50 W

• Dynamic Analog Inputs

• (Full range currently supported only for Acceleration 2 and Velocity 2)

• Supports 24 channels

• Typical inputs: Buffered transducer outputs from vibration monitor systems

• Input Impedance: 143 kΩ

• Frequency Range: DC to 30 kHz

• Signal Range: −25 V to +25 V

• Amplitude: 25 V peak-to-peak maximum

• Accuracy: ±1% full scale

Physical

• Dimensions (W x D x H): 384 mm (15.12 in) × 216 mm (8.50 in) × 136 mm (5.36 in)

• Weight

• AC Version: 4.2 kg (9.3 lb)
