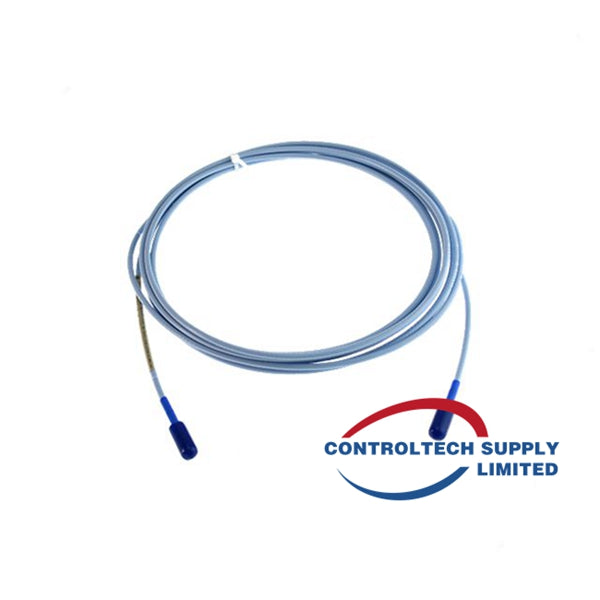

Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm Reverse Mount Probe
Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm Reverse Mount Probe
Manufacturer: Bently Nevada
Product No.: 330195-02-12-10-CN
Product Type: Probe
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Bently Nevada 330195-02-12-10-CN is an 8 mm 3300 XL Extended Temperature Range (ETR) Reverse Mount Probe designed for high-precision measurement of shaft vibration and position in rotating machinery operating under extreme temperature conditions.
This probe features a reverse-mount design with 3/8-24 UNF threads, allowing installation in tight or specialized spaces where standard mounting is not feasible. It is equipped with a 1.0-meter cable and is compatible with the 3300 XL Proximitor Sensor, providing high linearity, stable output, and reliable performance over extended temperature ranges.
The “CN” suffix denotes that this version is China-specific, meeting local regulatory and market requirements without compromising technical performance.
Part Number Breakdown
| Section | Code | Description |
|---|---|---|
| A | 02 | Mounting Style / Probe Type (Reverse Mount / Standard options) |
| B | 12 | Probe Housing / Feature Code (8 mm, ETR design) |
| C | 10 | Total Cable Length Option: 1.0 meter (3.3 feet) |
| DD | CN | China-specific version: Localized for Chinese market and regulatory compliance |
| Thread | 3/8-24 UNF | Thread Size: 3/8-24 UNF for reverse-mount installation |
