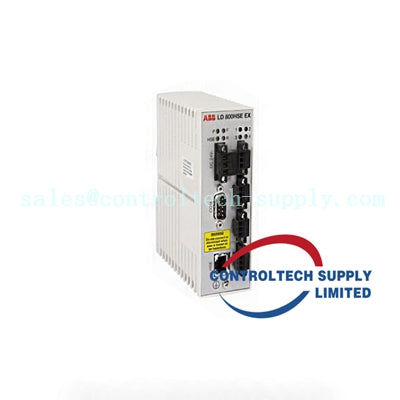

ABB LD 800HSE EX 3BSE073314R1 FOUNDATION Fieldbus Linking Device

Description

• Manufacturer: ABB

• Product No.: 3BSE073314R1

• Product Type: LD 800HSE EX module for DIN rail mounting with 4 H1 links and one HSE connector

• Certification: Certified for hazardous area Zone 2 acc. to ATEX and IECEx (Observe Release Notes)

Electrical Specifications

• Supply Voltage: 24 V DC (±20%)

• Current Consumption: Typ. 200 mA

• Power Dissipation: Typ. 4.8 W

Environmental Conditions

• Operating Temperature: 0° C ... +55° C (non-vertical mounting and hampered air convection may reduce upper temperature limit)

• Degree of Protection: IP 20

• Storage Temperature: -20° C ... +70° C

• Relative Humidity: 0% ... 95%, non-condensing

Communication Interfaces

• Ethernet Interface:

• Number of channels: 1

• Port: Ethernet 10BASE-T/100BASE-TX, RJ45

• Transfer rates: 10 Mbit/s or 100 Mbit/s (autosensing)

• H1 Fieldbus Interface:

• Number of channels: 4

• Port: FF H1 3-pole screw terminals (pluggable), transformer coupling, galvanically isolated

• Physical Layer Profile: Type 114, standard power signaling, separately powered, not intrinsically safe

• Transfer rate: 31.25 kbit/s

• Serial Interface:

• Port: 9-pole SubD male RS-232

• Transfer rate: 115.2 kbit/s

Additional Information

• Accessories: Redundancy Link Cable 0.5 m (to be ordered separately)

• Dimensions (L x H x W): 4.7 x 13.1 x 11.1 cm (mounted on DIN rail 35 mm)

• Weight: 0.4 Kg

• Shipping Weight: 1.5 Kg
