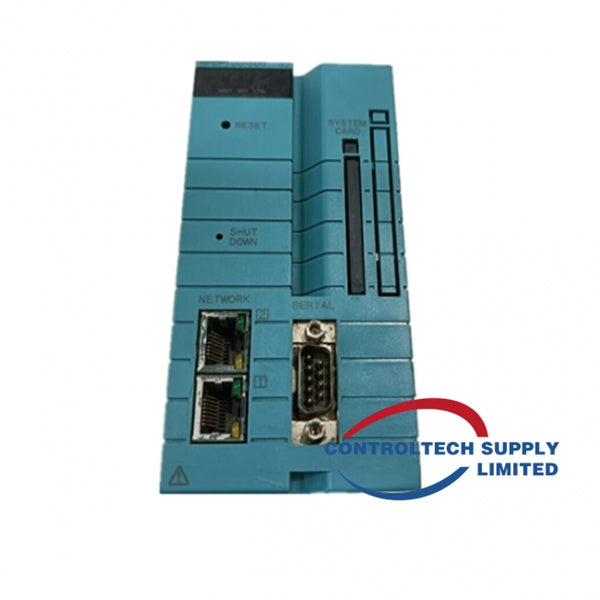

Yokogawa NFCP501-W15 CPU Module
Yokogawa NFCP501-W15 CPU Module
Manufacturer: Yokogawa
Product No.: NFCP501-W15
Product Type: CPU Module
Product Origin: Japan
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Description
The Yokogawa NFCP501-W15 is a high-performance CPU module designed for the FCN (Field Control Node) system, featuring 2 Ethernet ports for robust network connectivity.
Model and Suffix Codes
| Suffix Code | Description |
|---|---|
| -S | Standard functions (*1) |
| -W | Extended functions (*1) |
| 0 | Standard type |
| 1 | Extended temperature range option |
| 5 | Basic type without explosion protection |
| 6 | ISA standard G3 option, without explosion protection |
| E | Basic type with explosion protection |
| F | ISA standard G3 option with explosion protection |
Specifications Table
| Item | Specification NFCP501 | Specification NFCP502 |
|---|---|---|
| Model | NFCP501 | NFCP502 |
| Processor | Atom E3815 1.46 GHz | |
| Memory | ||
| Main | 256 MB with ECC | |
| Static RAM | 2 MB with ECC, backed up by battery | |
| Secondary memory | 1 GB on-board flash memory | |
| External media | SD card 1 slot: SDHC (4 to 32GB) Class 10 | |
| Serial Port (*1) | 1 RS-232-C port: D-sub 9 pins, male (*2) | |
| Communication method | Full/Half duplex (software settings) | |
| Synchronisation | Asynchronous | |
| Baud rate | 0.3, 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6, or 115.2 kbps | |
| Network interface | 2 Ethernet ports: RJ45 modular jacks | 4 Ethernet ports: RJ45 modular jacks |
| Baud rate | 1000, 100, 10 Mbps, (1000BASE-T, 100BASE-TX, 10BASE-T) | |
| I/O interface | SB bus (duplex) | |
| RAS features | Watchdog timer, temperature monitor, etc. | |
| Battery (*3) | 1000 mAh graphite fluoride lithium battery (*4) | |
| Display | 3 LEDs for CPU status indication, 2 LEDs for Ethernet status indication, 1 LED for SD LED, 1 LED for EXEC LED | |
| Switches | RESET switch, SHUT DOWN switch, FUNC switch, EXEC switch | |
| Protection | CPU cover (with the hole for wire lock) |
