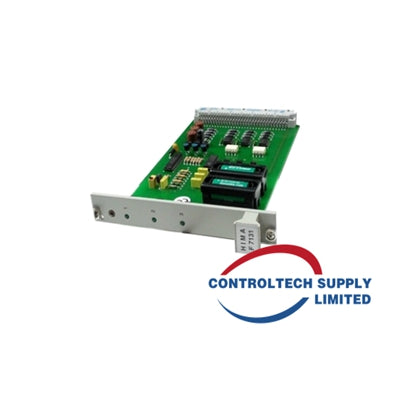

HIMA F3313 Digital Input/Output Module
HIMA F3313 Digital Input/Output Module
Manufacturer: HIMA
Product No.: F3313
Product Type: Digital Input/Output Module
Product Origin: Germany
Payment: T/T
Weight: 0g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The HIMA F3313 is a digital input/output module used in safety-related process automation systems. It is designed to interface with field sensors or contacts and to provide reliable digital signalling into the control logic. The module offers options for proximity switch inputs, line monitoring for open- or short-circuit conditions, and supports different operating voltages. It integrates into subracks where the required low-voltage supply is provided.
Technical Data
| Parameter | Specification |
|---|---|
| Model | F3313 |
| Type / Function | Digital input/output module with proximity switch capability and line monitoring for open/short circuit detection |
| Operating Voltages | Primarily 5 V DC derived from subrack power supply; supports also 24 V DC signals for some options |
| Signal Input | Proximity switch input; supports detecting open-circuit (OC) and short-circuit (SC) conditions |
| Switching Time | Approximately 8 ms |
| Supply of Logic / I/O Power | The 5 V DC supply is built into the subrack; this supply also powers the CPU and logic interfaces |
| Power Redundancy | Subrack includes two power supply modules in parallel, so that module is still powered if one supply fails |
| Dimensions | 160 mm × 160 mm × 120 mm |
| Weight | 0.8-1.0 kg |
| Mounting | Installed in subrack with front-face cable plugs for I/O connections; LED indicators for status of outputs |
