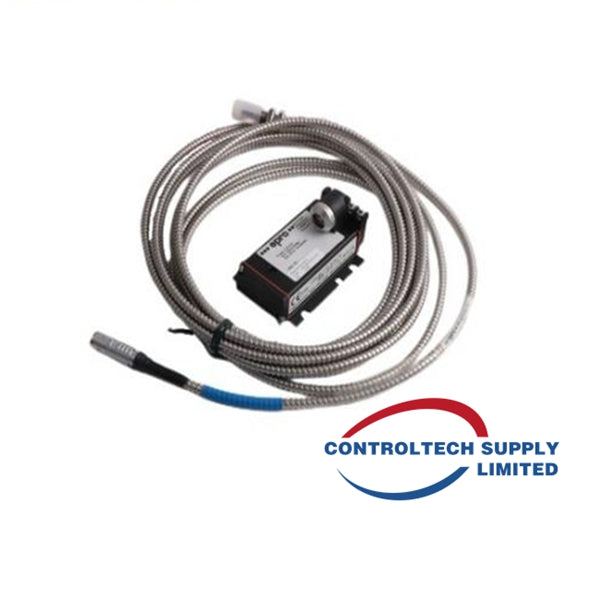

EPRO CON021+PR6423/10R-030-CN Eddy Current Sensor System

Product Description

The EPRO CON021+PR6423/10R-030-CN is a high-performance eddy current sensor system designed for non-contact displacement measurement in industrial applications. It is widely used for monitoring shaft vibration, position, and displacement in rotating machinery such as turbines, compressors, and pumps.

Technical Specifications

• Product Type: Eddy Current Sensor System

• Manufacturer: Emerson EPRO

• Signal Converter (CON021):

• Frequency Range: 0 to 30 kHz

• Operating Voltage: 220V

• Protection Class: IP20

• Certifications: CE, RoHS

• Weight: 0.32 kg

• Eddy Current Sensor (PR6423/10R-030-CN):

• Sensor + 1m Cable: -35°C to +180°C

• Cable & Connector: -35°C to +150°C

• Measuring Range: 2 mm

• Initial Air Gap: 0.5 mm

• Minimum Shaft Diameter: 25 mm

• Output Signal: 4 to 20 mA

• Accuracy: ±0.1 mm

• Repeatability: ±0.05 mm

• Power Supply: 12 to 24 VDC

• Protection Class: IP66

• Operating Temperature Range:

• Sensor Tip Material: PEEK

• Sensor Case Material: Stainless Steel

• Cable Material: PTFE

• Connector Material: Nickel-plated brass

• Cable Length: 8 meters
