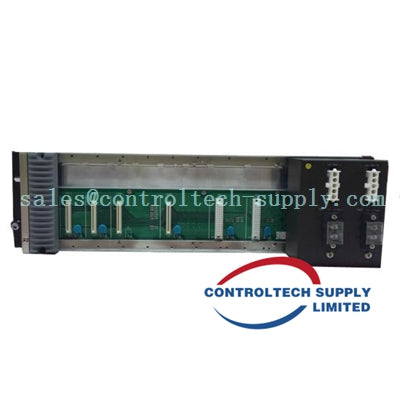

YOKOGAWA AVR10D-Q22020 Duplexed V Net Router

Specifications

Mounting

• 19-inch Rack Mounting

• Rack mount (4 x M5 screws)

• Insulation bush (accessory)

Connection

• Power Supply: M4 screw terminal connection

• Grounding: M4 screw terminal connection

• V net and VL net Side: T-junction BNC connection

• Vnet/IP Side: UTP cable (CAT5e or better)

Power Supply (Specify with Suffix Code)

• Voltage:

• 100-120 V AC, Frequency: 50/60 Hz

• 220-240 V AC, Frequency: 50/60 Hz

• 24 V DC

Power Consumption

• 100-120 V AC: 80 VA

• 220-240 V AC: 110 VA

• 24 V DC: 1.7 A

• Power supply method: Dual-line or single power line

Weight

• Approx. 5.8 kg

Duplexed V net Router

Description

• Model: AVR10D Duplexed V net Router

• Configuration: Duplexed communication module, Duplexed power module

Suffix Codes

• -A1: For Single VL net

• -A2: For Dual-Redundant VL net

• -Q1: For Single V net (10BASE-2)

• -Q2: For Dual-Redundant V net (10BASE-2)

• 1: Single Power Supply

• 2: Dual Power Supply

• 0: Always 0

• 1: 100-120 V AC Power Supply

• 2: 220-240 V AC Power Supply

• 4: 24 V DC Power Supply

• 0: Basic type

• 1: With ISA Standard G3 option
