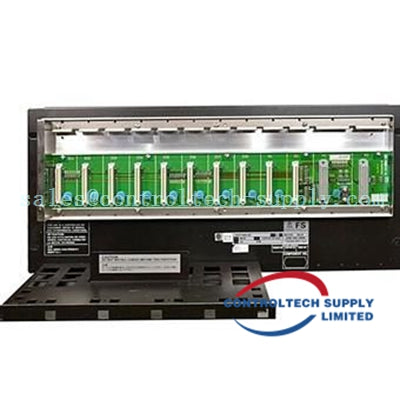

YOKOGAWA AFV10D-S41101 Dual Redundant Field Control Unit (FCU)

Product Description

The YOKOGAWA AFV10D-S41101 Dual Redundant Field Control Unit (FCU) is a critical component in Yokogawa's CENTUM VP Distributed Control System (DCS). It ensures high reliability and availability in industrial automation applications by handling signals from field devices, executing control algorithms, and issuing commands to maintain system stability2.

Technical Specifications

• Model: AFV10D-S41101

• Type: Dual Redundant Field Control Unit (FCU)

• Communication Protocol: Vnet/IP

• I/O Module Support: Compatible with analog and digital input/output modules

• Power Supply:

• 100-120V AC, 200 VA, 50/60 Hz

• Operating Temperature: 0°C to 55°C

• Dimensions: 5.1 cm x 20.3 cm x 14.6 cm

• Weight: 0.9 kg

Model and Suffix Codes

• Model: AFV10D - Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch rack mountable)

• Suffix Codes:

• -S: Standard type

• 4: Dual-Redundant Vnet/IP, Dual-Redundant power supply

• 1: Always 1

• 1: 100-120 V AC power supply

• 0: Basic type

• 1: LFS1500 Control Function for Field Control Station (for Vnet/IP and FIO)
