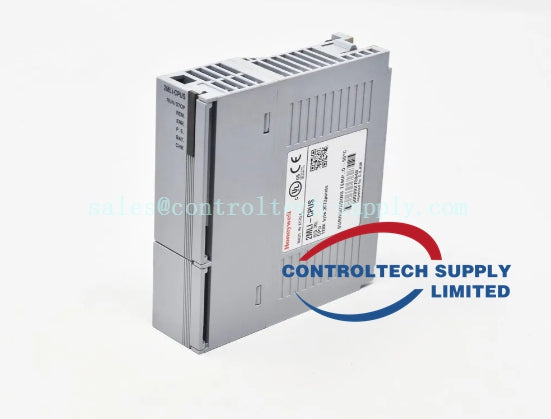

HONEYWELL 2MLI-CPUU CPU Model
HONEYWELL 2MLI-CPUU CPU Model
Manufacturer: HONEYWELL
Product No.: 2MLI-CPUU
Product Type: CPU Model
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Description
The HONEYWELL 2MLI-CPUU is a high-performance CPU module designed for advanced process control and automation applications. It features large memory capacity for program execution, data logging, and system parameter management. The CPU supports multiple bases and slots, enabling flexible expansion of I/O modules and network integration. With robust architecture and support for remote I/O, it ensures reliable operation in demanding industrial environments.
Specifications
Memory Specification
| Memory Type | Size | Remarks |
|---|---|---|
| Total Memory | 25 MB | — |
| Built-in Flash Memory | 16 MB | For program & data backup |
| Program Memory (including System Memory) | 7 MB | For program execution, upload, system parameters, history logs |
| Data Memory | 2 MB | Direct variables & Symbolic (named) variables |
System Configuration
| Parameter | Value | Remarks |
|---|---|---|
| Max # of bases | 8 | 1 main base + 7 extension bases |
| Max # of slots | 96 | 12 slots × 8 bases = 96 slots |
| Base I/O (using 64 ch DI/DO module) | 6,144 points | 96 slots × 64 channels |
| Base I/O (using 32 ch DI/DO module) | 3,072 points | 96 slots × 32 channels |
| Network & Remote I/O (Max I/O memory) | 128,000 points | Using network I/O |
Main CPU Base Options
| Model | Number of Modules | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 2MLB-M12A | 12 modules | 426 × 98 × 19 | 0.54 |
| 2MLB-M08A | 8 modules | 318 × 98 × 19 | 0.42 |
| 2MLB-M06A | 6 modules | 264 × 98 × 19 | 0.34 |
| 2MLB-M04A | 4 modules | 210 × 98 × 19 | 0.28 |
