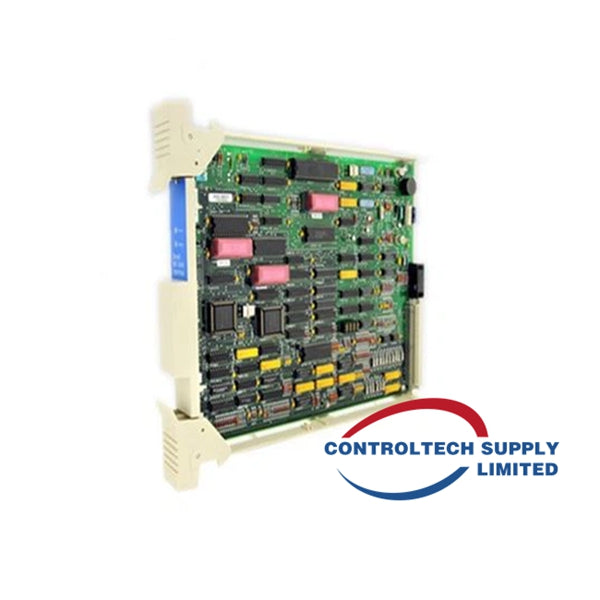

Honeywell 05704-A-0146 5704F Fire Control Card
Honeywell 05704-A-0146 5704F Fire Control Card
Manufacturer: HONEYWELL
Product No.: 05704-A-0146
Product Type: Fire Control Card
Product Origin: USA
Payment: T/T
Weight: 160g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The 5704F Four Channel Fire Control Card is designed to manage, display, and provide alarm handling for up to four independent fire detection loops (zones). Each loop can support multiple detectors depending on detector type.
The module includes two fault-monitored switched DC outputs and a minimum of six volt-free relay outputs, ensuring flexible integration into fire safety systems.
The front panel features clear LED indicators for real-time status visibility of all inputs, outputs, and overall card condition. A dedicated push-button allows selection of the card for operation with both the Fire Status Panel and the Engineering Card.
Specifications
| Item | Details |
|---|---|
| Fire Zone Inputs | 4 independent fire detection zones |
| Switched DC Outputs | 2 fault-monitored switched DC outputs |
| Remote Input | Single 3-function remote input |
| Relay Outputs | Up to 16 configurable volt-free relay outputs |
| Front Panel Indicators | - Per Zone: Fire (Red), Fault (Amber), Inhibit (Amber), Select (Amber) - Per Output: Fault (Amber) - Others: Power (Green), Call Engineer (Amber) |
| Zone Input Alarm Thresholds (Default) | - Open Circuit Fault: 0–3 mA - Normal: 3–10 mA - Fire Alarm: 10–30 mA - Short Circuit Fault: 30–50 mA |
| Dimensions | Height: 132 mm Width: 25 mm Depth: 172 mm |
| Weight | 160 g |
