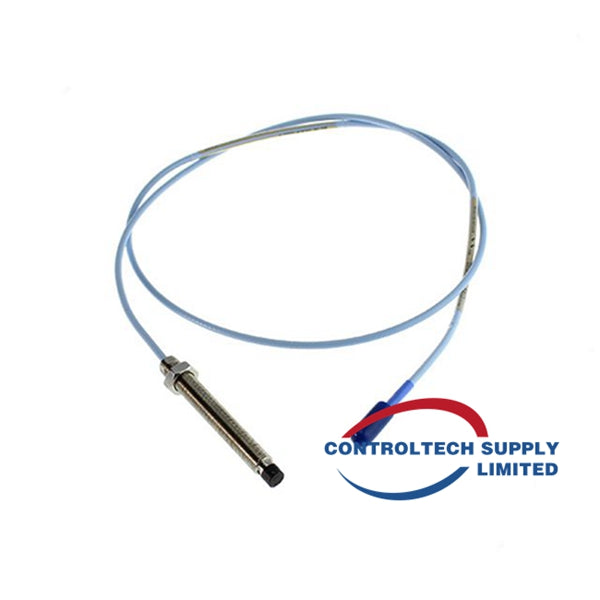

BENTLY NEVADA 330104-00-13-05-02-00 3300 XL 8 mm Proximity Probe
BENTLY NEVADA 330104-00-13-05-02-00 3300 XL 8 mm Proximity Probe
Manufacturer: Bently Nevada
Product No.: 330104-00-13-05-02-00
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Description
The Bently Nevada 330104-00-13-05-02-00 is a 3300 XL 8 mm proximity probe designed for precise, non-contact measurement of shaft vibration and position in rotating machinery. It uses eddy current technology to provide accurate displacement data and is engineered for use in harsh industrial environments. The probe features an M10 x 1 thread with armored cable protection, ensuring durability against mechanical damage and EMI interference. This model is part of Bently Nevada’s 3300 XL series, offering high reliability, stable performance, and compatibility with 3300 XL Proximitor sensors and extension cables.
Part Number Configuration
| Code Element | Description | Option Details |
|---|---|---|
| Part Number | Model Identifier | 330104-00-13-05-02-00 |
| A | Unthreaded Length Option | 00 = 0 mm |
| B | Overall Case Length Option | 13 = 130 mm |
| C | Total Cable Length Option | 05 = 0.5 meter (1.6 feet) |
| D | Connector and Cable Type Option | 02 = Miniature coaxial ClickLoc connector, standard cable |
| E | Agency Approval Option | 00 = Not required |
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm proximity probe |
| Thread Size | M10 x 1 |
| Tip Diameter | 8 mm (0.315 in) |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Range | 0 to 10 kHz |
| Cable Type | Armored, standard cable |
| Cable Length | 0.5 m (probe only) |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Target Material | Conductive (typically AISI 4140 steel) |
| System Compatibility | Bently Nevada 3300 XL Proximitor sensors and extension cables |
| Mounting Option | Standard stud or bracket mounting |
