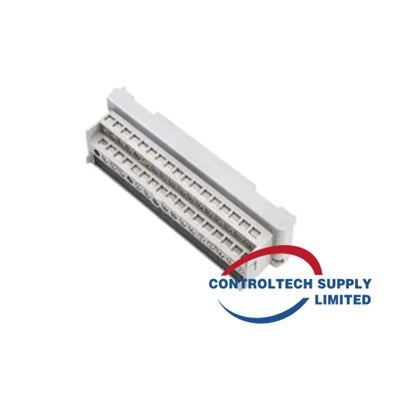

YOKOGAWA ATI3S-001 Pressure Clamp Terminal Block

YOKOGAWA ATI3S-001 Pressure Clamp Terminal Block

  • Manufacturer: YOKOGAWA

  • Product No.: ATI3S-001

  • Product Type: Terminal Block

  • Product Origin: Japan

  • Payment: T/T

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

The YOKOGAWA ATI3S-001 Pressure Clamp Terminal Block is designed for use with isolated analog modules, ensuring secure connections and reliable signal transmission. It provides 8 connection points and supports single-channel analog input/output modules.

Technical Specifications

  • Model: ATI3S-001

  • Application: Isolated Analog Module (Single)

  • Channels: 8 (Compatible with AAI135, AAP135)

  • Surge Absorber: No

  • Weight: 0.2 kg

  • Dimensions:

    • Length: 120 mm

    • Width: 80 mm

    • Height: 40 mm

  • Electrical Specifications:

    • Rated Voltage: 24 V DC

    • Rated Current: 0.5 A per channel

    • Insulation Resistance: 100 MΩ at 500 V DC

    • Dielectric Strength: 1500 V AC for 1 minute
