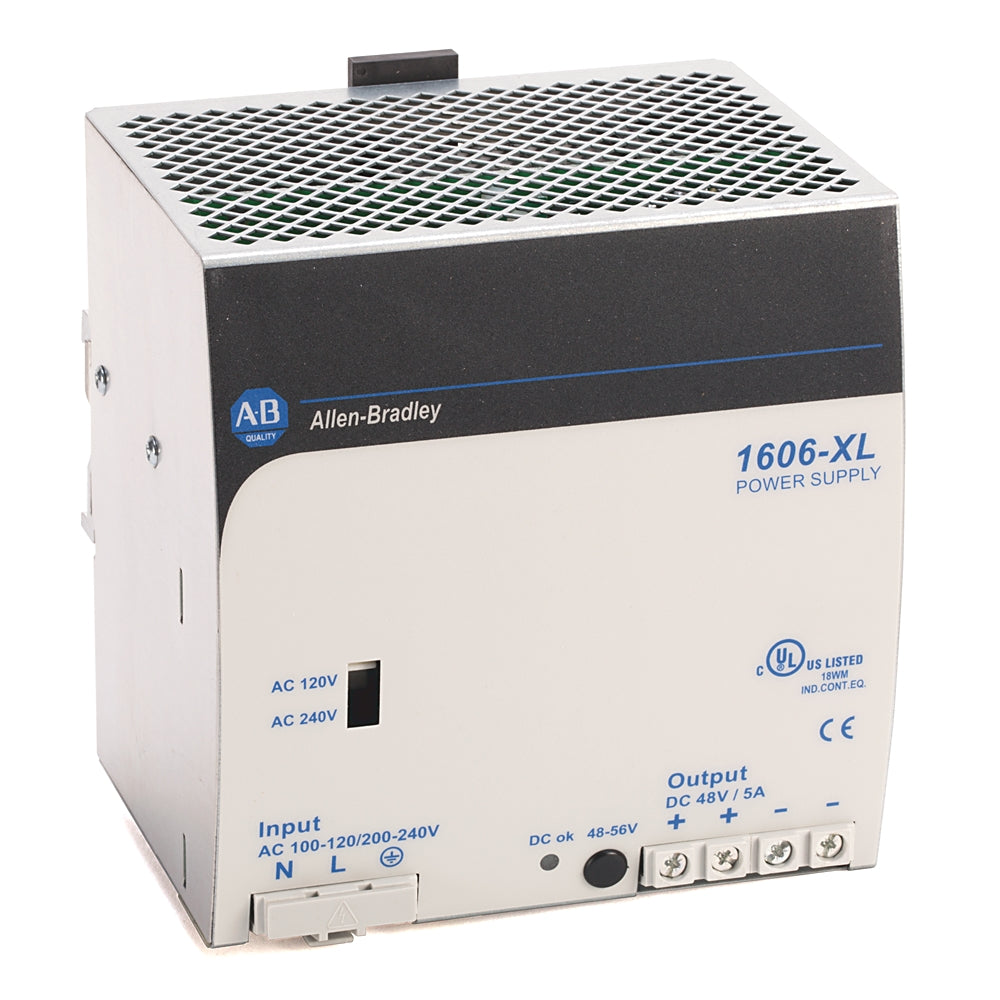

ALLEN-BRADLEY 1606-XL480EP Power Supply
ALLEN-BRADLEY 1606-XL480EP Power Supply
Manufacturer: Allen Bradley
Product No.: 1606-XL480EP
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
General Description
The Allen-Bradley 1606-XL480EP power supply is a cost-optimized solution designed without compromising quality, reliability, or performance. It features high efficiency, electronic inrush current limitation, active power factor correction (PFC), and a wide operational temperature range. The compact size is achieved through synchronous rectification and other advanced design techniques.
Specifications
| Parameter | Specification |
|---|---|
| Output Voltage DC | 24 V |
| Adjustment Range | 24 – 28 V |
| Output Current | 20 A at 24 V (ambient <60°C); 24 A at 24 V (ambient <45°C); 17.1 A at 28 V (ambient <60°C); 20.6 A at 28 V (ambient <45°C) |
| Output Power | 480 W (ambient <60°C); 576 W (ambient <45°C) |
| Output Ripple | <50 mVpp (20 Hz to 20 MHz) |
| AC Input Voltage | AC 100–240 V (-15%/+10%) |
| Mains Frequency | 50–60 Hz ±6% |
| AC Input Current | 4.36 / 2.33 A at 120 / 230 V AC |
| Power Factor | 0.99 / 0.95 at 120 / 230 V AC |
| AC Inrush Current | Typ. 9 / 7 A peak at 120 / 230 V AC |
| Efficiency | 92.7 / 94.0% at 120 / 230 V AC |
| Losses | 37.8 / 30.6 W at 120 / 230 V AC |
| Temperature Range | –25°C to +70°C operational |
| Derating | 12 W/°C from +60 to +70°C |
| Hold-up Time | Typ. 26 ms at 120 / 230 V AC |
| Dimensions (WxHxD) | 65 × 124 × 127 mm |
| Weight | 1000 g / 2.2 lb |
