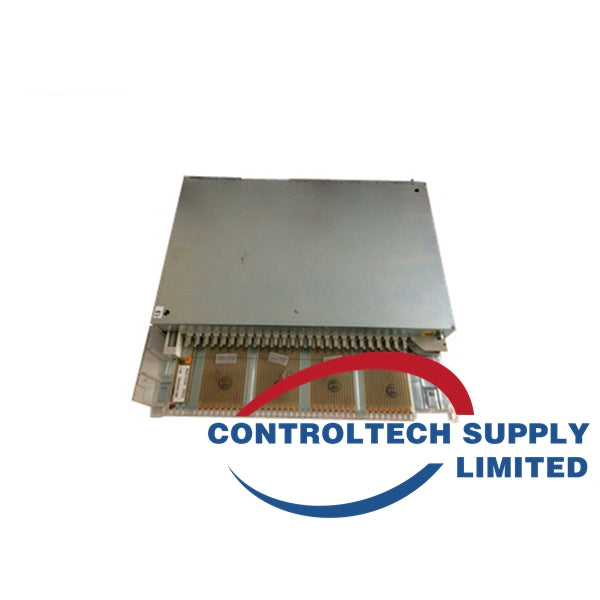

ABB G4AC HENF209544R1 P4LT RF-Converter Module
ABB G4AC HENF209544R1 P4LT RF-Converter Module
Manufacturer: ABB
Product No.: G4AC HENF209544R1
Product Type: RF-Converter Module
Product Origin: USA
Payment: T/T
Weight: 750g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB G4AC HENF209544R1 is a P4LTb RF-converter module used as part of the ETL600 Digital Power Line Carrier system. It functions to convert low frequency (LF) signals into radio frequency (RF) signals and vice versa, and supports narrowband data transmission over power lines. This unit comprises an integrated DPLC modem, a DSP (digital signal processor) for signal conditioning and processing, and an HMI (human-machine interface) port for configuration and status interaction. It also includes multiple serial interface ports, status LEDs, and standard communication connectors to support diagnostics, alarm monitoring, and system control functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | G4AC HENF209544R1 |
| Module Type | P4LTb RF-Converter |
| Core Functions | LF ↔ RF conversion, digital signal processing, modem interface |
| Data Rate | Narrowband, 50 to 9,600 bps |
| Voltage Inputs / Interfaces | 1 × V.11, 2 × V.24 |
| Serial / Communication Ports | 4 × RS-232 (V.24/V), Sub-D 15-pin for V.11, Sub-D 9-pin for HMI (RS-232/RS-485), IRIG-B port |
| LED Indicators | RDY (green) – “system ready”; P4LT (red) – hardware alarm; SYS (red) – system alarm |
| Dimensions (L × W × H) | 132 mm × 53 mm × 65 mm |
| Weight | 0.75 kg |
| Operating Temperature | –20 °C to +70 °C |
| Humidity Rating | Up to 95%, non-condensing |
| System Compatibility | ABB ETL600 Digital Power Line Carrier system |
| Warranty | 12 months |
