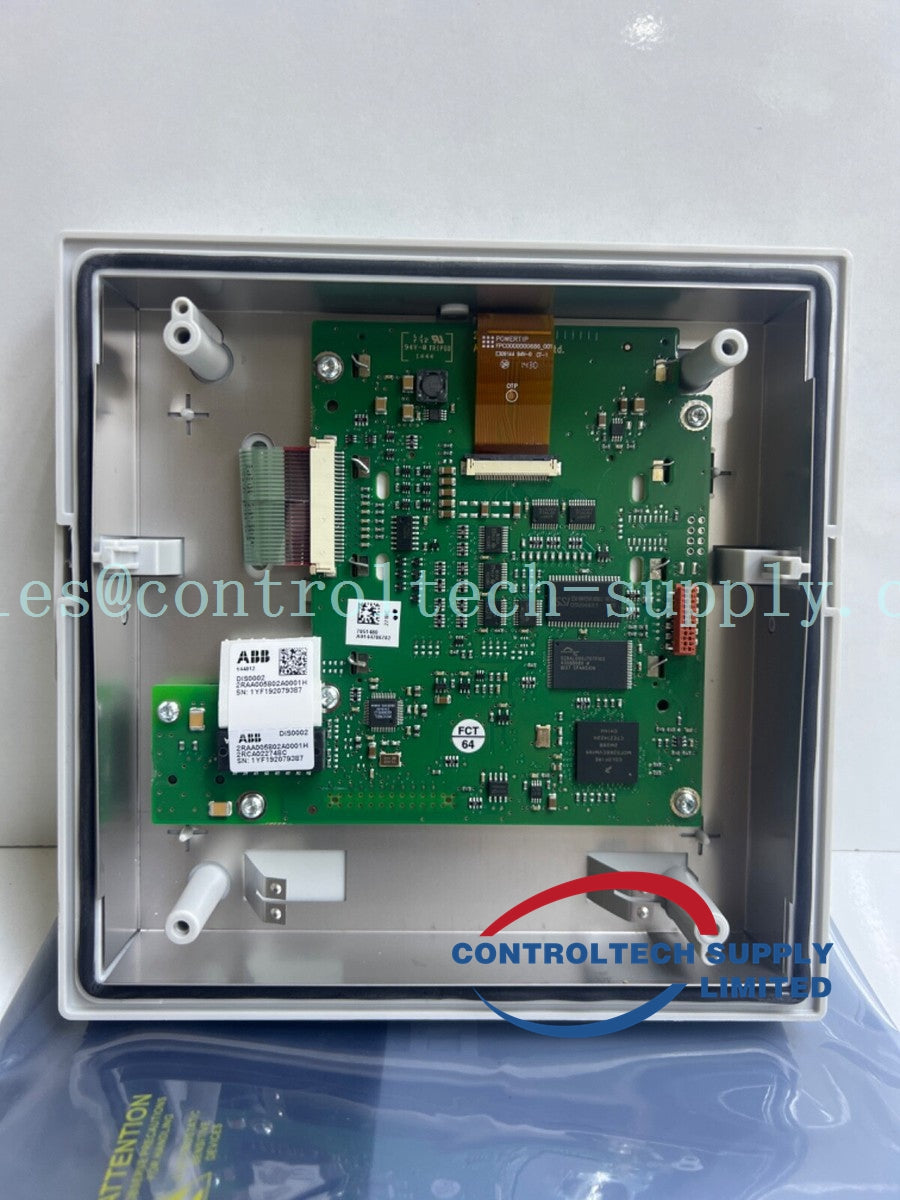

ABB DIS0006 2RAA005802A0003G Digital Input Module
ABB DIS0006 2RAA005802A0003G Digital Input Module
Manufacturer: ABB
Product No.: DIS0006 2RAA005802A0003G
Product Type: Digital Input Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB DIS0006 2RAA005802A0003G is a Digital Input Module designed for integration with ABB’s protection relay systems (such as the 615 series). It provides reliable, high-speed acquisition of digital signals like switch positions, contact states, and sensor outputs. The module is engineered for industrial environments, ensuring robust performance under varying conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Function | Digital input module for ABB 615 series protection relays |
| Input Channels | 12 digital inputs |
| Input Voltage Range | 24 V DC to 250 V DC |
| Nominal Input Current | Approximately 2 mA |
| Response Time | Typical approximately 5 ms |
| Power Consumption | Maximum around 1.5 W |
| Isolation | 2 kV AC between inputs and system |
| Interfaces / Mounting | DIN-rail mounting, IP20 protection rating |
| Dimensions | Approximately 130 mm × 100 mm × 35 mm (height × width × depth) |
| Weight | Approximately 0.3 kg |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5 % to 95 % RH, non-condensing |
| EMC Immunity | Compliant with IEC 61000-4-2, 8 kV |
| Vibration Resistance | 2 G, frequency range 10–150 Hz |
| Shock Resistance | Withstands 15 G shock for 11 ms |
| Certifications | CE, RoHS, IEC compliant |
| Component Count / Structure | Comprises input-processing circuitry, isolation barriers, DIN-rail housing |
| Energy Storage | No internal batteries or capacitors for energy storage specified |
