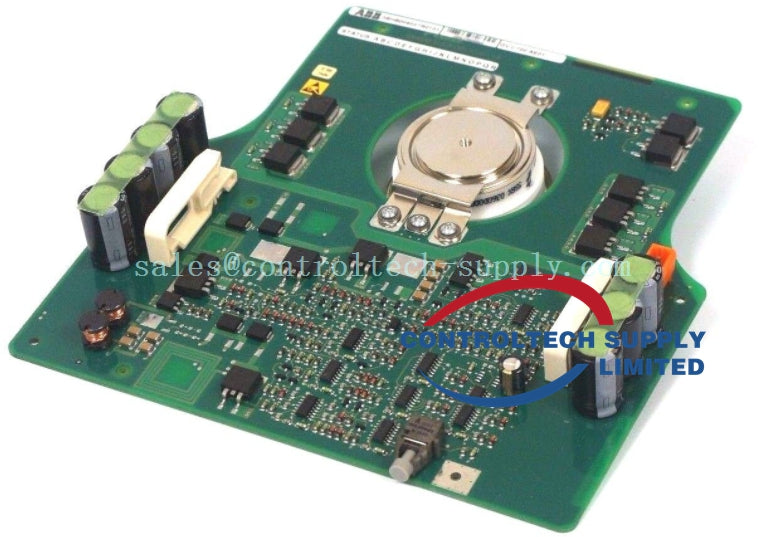

ABB 5SHX1445H0002 3BHL000387P0101 Integrated Gate-Commutated Thyristor (IGCT) module

General Information

The ABB 5SHX1445H0002 3BHL000387P0101 is an Integrated Gate-Commutated Thyristor (IGCT) module designed for high-power switching applications. It integrates six IGBTs and six diodes in a three-phase bridge configuration, optimized for medium-frequency voltage source inverters (VSI) operating at frequencies below 1 kHz. This module is commonly used in systems such as the ACS6000 and PCS6000 for applications like motor drives, renewable energy systems, and grid management.

Technical Specifications

• Voltage Rating: 1.2 kV

• Current Rating: 1,450 A

• Short-Circuit Withstand Capability: 10 kA

• Thermal Resistance: 0.1°C/W

• Maximum Operating Temperature: 150°C

• Switching Frequency: Up to 20 kHz

• Operating Temperature Range: -40°C to +85°C

• Dimensions: 140 mm x 190 mm x 30 mm

• Weight: Approximately 1.5 kg
