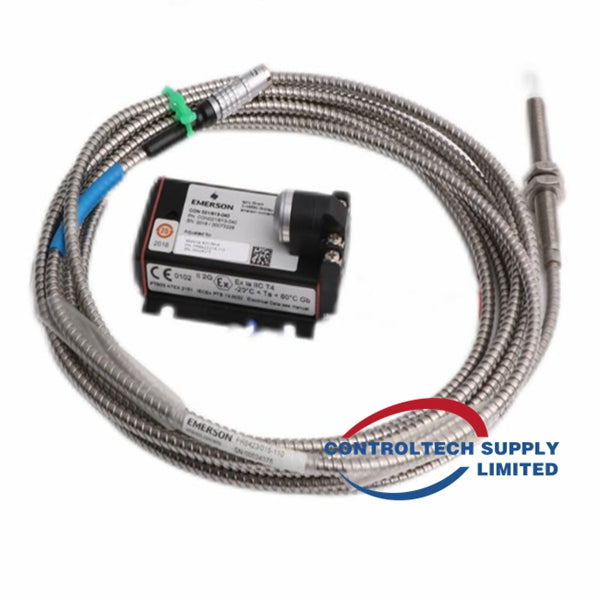

EPRO CON021+PR6423/003-110 Eddy Current Sensor System

Product Description

The EPRO CON021+PR6423/003-110 is a high-precision eddy current sensor system designed for monitoring shaft dynamics in critical turbomachinery. It ensures accurate displacement, position, and vibration measurements, making it ideal for industrial applications.

Technical Specifications

• Product Type: Eddy Current Sensor System

• Manufacturer: EPRO

• Signal Converter (CON021):

• Frequency Range: 0 to 20,000 Hz

• Operating Temperature: -30°C to +100°C

• Power Supply: -23V to -32V DC

• Protection Class: IP20

• Certifications: ATEX, IECEx, CSA

• Material: LMgSi 0.5 F22 alloy housing

• Weight: 120 grams

• Eddy Current Sensor (PR6423/003-110):

• Measuring Range: ±1.0 mm static, 0 to 500 μm dynamic

• Nominal Gap: 1.5 mm

• Operating Temperature: -35°C to +180°C

• Material: Stainless steel

• Thread: M10x1 metric thread

• Cable Length: 3 meters (standard)

• Certifications: DIN 45670, ISO 10817-1, API 670
