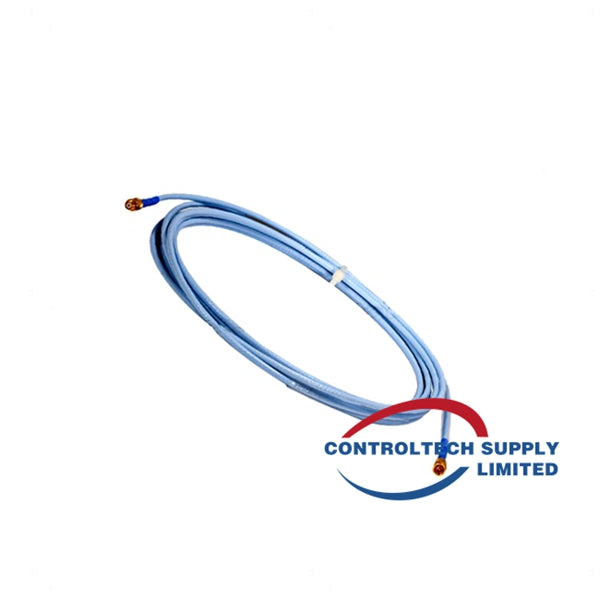

BENTLY NEVADA 330103-00-09-05-02-00 3300 XL 8 mm Proximity Probe
BENTLY NEVADA 330103-00-09-05-02-00 3300 XL 8 mm Proximity Probe
Manufacturer: Bently Nevada
Product No.: 330103-00-09-05-02-00
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Description
The Bently Nevada 330103-00-09-05-02-00 is a 3300 XL 8 mm proximity probe designed for accurate, non-contact measurement of shaft vibration and position in rotating machinery. Utilizing eddy current technology, this probe provides precise and repeatable displacement measurements. It features an M10 x 1 threaded stainless-steel body and is supplied without armor, making it ideal for installations where flexible, unarmored cable routing is preferred. The probe is part of Bently Nevada’s 3300 XL series, known for its superior reliability, extended temperature range, and compatibility with 3300 XL Proximitor sensors and extension cables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm proximity probe |
| Thread Size | M10 x 1 |
| Tip Diameter | 8 mm (0.315 in) |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Range | 0 to 10 kHz |
| Cable Type | Unarmored, standard cable |
| Cable Length | 0.5 m (probe only) |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Target Material | Conductive (typically AISI 4140 steel) |
| System Compatibility | Bently Nevada 3300 XL Proximitor sensors and extension cables |
| Mounting Option | Standard stud or bracket mounting |
Part Number Configuration
| Code Element | Description | Option Details |
|---|---|---|
| Part Number | Model Identifier | 330103-00-09-05-02-00 |
| A | Unthreaded Length Option | 00 = 0 mm |
| B | Overall Case Length Option | 09 = 90 mm |
| C | Total Cable Length Option | 05 = 0.5 meter (1.6 feet) |
| D | Connector and Cable Type Option | 02 = Miniature coaxial ClickLoc connector, standard cable |
| E | Agency Approval Option | 00 = Not required |
