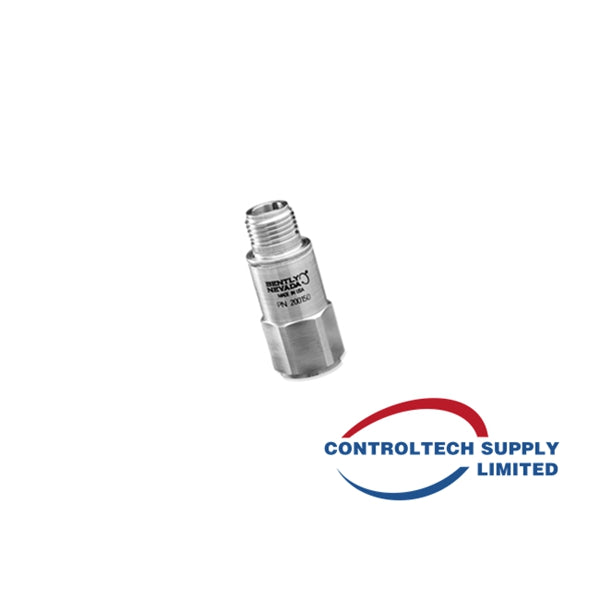

Bently Nevada 121M6469-02 Wireless Triaxial Vibration & Temperature Sensor
Bently Nevada 121M6469-02 Wireless Triaxial Vibration & Temperature Sensor
Manufacturer: Bently Nevada
Product No.: 121M6469-02
Product Type: Sensor
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Bently Nevada 121M6469-02 is a wireless triaxial vibration and temperature sensor from the Ranger Pro series. It provides continuous, real-time monitoring of rotating machinery, capturing vibration across three axes (X, Y, Z) and casing temperature. Designed for predictive maintenance, it helps in early detection of issues such as imbalance, misalignment, and bearing faults. The sensor is suitable for applications in power generation, oil and gas, and manufacturing industries.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 121M6469-02 |
| Sensor Type | Wireless triaxial accelerometer with integrated temperature sensor |
| Measurement Axes | Acceleration (X, Y, Z), Velocity (X, Y, Z), Casing Temperature |
| Sensing Element | Piezoelectric ceramic |
| Amplitude Range | ±20 g peak |
| Accuracy | ±5% (Z-axis @160 Hz), ±10% (X/Y axes @160 Hz) |
| Transverse Sensitivity | 7% typical |
| Velocity Frequency Range | 5 – 2000 Hz |
| Velocity Amplitude Range | 0 – 50 mm/s (0–2 in/s), peak or RMS |
| Temperature Range | −40 °C to +120 °C |
| Temperature Accuracy | ±1 °C (typical), ±3 °C (maximum) |
| Resolution | 0.1 °C |
| Wireless Protocol | ISA100.11a (IEEE 802.15.4, 2.405–2.48 GHz) |
| Wireless Range | 150 m line-of-sight; 100 m sensor-to-sensor |
| Security | 128-bit AES encryption |
| Power Supply | Replaceable D-size 3.6 V lithium battery |
| Battery Life | Up to 5 years (depending on interval and configuration) |
| Ingress Protection | IP67 (dust-tight and water-resistant) |
| Mounting Options | Direct stud mount or tethered for high-temperature applications |
| Size | 88 mm × 40 mm |
| Weight | 300 g |
