Specifications
-
Part Number: IS200EMCSG1AAB
-
Manufacturer: General Electric (GE)
-
Country of Manufacture: United States of America (USA)
-
Operating Temperature: -30 to 65°C
-
Connectors: Six-plug connectors
-
Dimensions: 4.35 in (L) × 2 in (W)
-
Number of Conduction Sensors: 4 (E1–E4)
-
Product Type: Exciter Multibridge Conduction Sensor Card
-
Series: Mark VI
-
Availability: In Stock
Functional Description
-

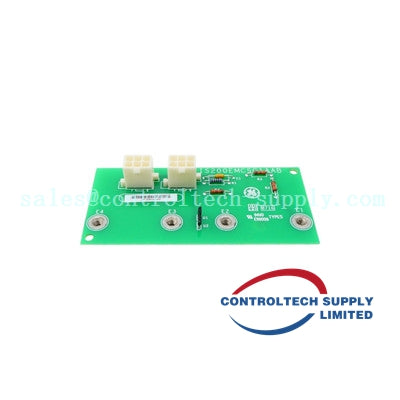

IS200EMCSG1AAB is an Exciter Multibridge Conduction Sensor Card used within GE’s Mark VI control system.
-
Designed to monitor conduction behavior in exciter systems, helping detect irregularities and maintain optimal system performance.
-
Utilizes advanced conduction sensing technology to analyze multiple conduction points within the exciter.
-
Ensures reliable operation through stable power connectivity and precision monitoring capabilities.
Features
-
Four Conduction Sensors (E1–E4):
-
Positioned along the bottom edge for full coverage of conduction monitoring.
-
Independent Sensor Circuits (U1 & U2):
-
Located between sensors E2 and E3.
-
Provide redundancy and enhanced monitoring accuracy.
-
Power Supply Connectivity:
-
Powered through two six-plug connectors mounted on the board’s edge.
-
Ensures efficient and uninterrupted power distribution for all sensing functions.
