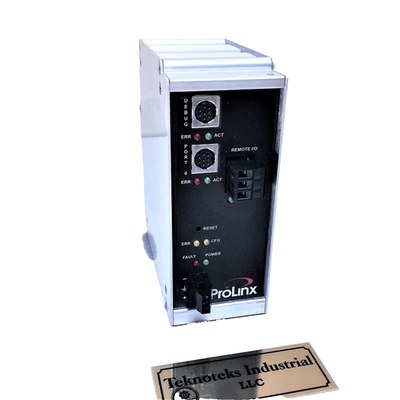

PROSOFT 5601-RIO-MCM DIN-Rail Mounted Protocol Gateway
PROSOFT 5601-RIO-MCM DIN-Rail Mounted Protocol Gateway
Manufacturer: ProSoft
Product No.: 5601-RIO-MCM
Product Type: DIN-Rail Mounted Protocol Gateway
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ProSoft 5601-RIO-MCM is a stand-alone DIN-rail mounted protocol gateway designed to bridge Rockwell Automation Remote I/O networks with Modbus Master/Slave devices. This module facilitates seamless communication between devices using different industrial protocols, enabling integration in automation systems.
Technical Specifications
| Category | Specification |
|---|---|
| Model | 5601-RIO-MCM |
| Mounting | DIN-rail |
| RIO Interface | Adapter (slave) |
| Modbus Protocol | Master/Slave |
| Serial Ports | Up to four serial ports (RS-232/RS-422/RS-485) |
| Power Consumption | 500 mA max @ 32 VDC |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (WxHxD) | 5.2 in x 2.07 in x 4.52 in (132 mm x 52.5 mm x 115 mm) |
| Weight | 0.3 kg (0.66 lb) |
