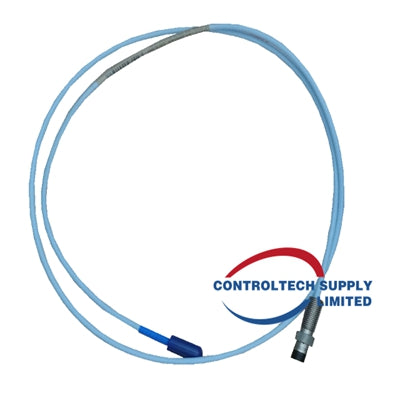

Bently Nevada 19000-00-95-12-02 Proximity Probe
Bently Nevada 19000-00-95-12-02 Proximity Probe
Manufacturer: Bently Nevada
Product No.: 19000-00-95-12-02
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months
Product Description
-
The Bently Nevada 19000-00-95-12-02 is a precision proximity probe designed for non-contact measurement of shaft position and vibration in rotating machinery.
-
It operates on the eddy-current principle, converting the distance between the probe tip and the target surface into an electrical signal for precise monitoring.
-
This probe is an integral component of Bently Nevada’s machinery protection and condition monitoring systems, widely used in turbines, compressors, pumps, and motors.
-
The device provides reliable measurement in harsh environments, ensuring early detection of mechanical issues such as imbalance, misalignment, or bearing wear.
-
It is constructed with a durable stainless-steel housing and high-quality insulation materials for enhanced resistance to oil, moisture, and temperature fluctuations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / Part Number | 19000-00-95-12-02 |
| Product Type | Eddy-current proximity probe |
| Measurement Function | Shaft vibration and position monitoring |
| Probe Length | 9.5 inches (approximately 241 mm) |
| Probe Diameter | 10 mm (nominal) |
| Measurement Range | Up to 2.0 mm (80 mils) peak-to-peak |
| Sensitivity | 200 mV/mm (7.87 mV/mil) |
| Frequency Response | 10 kHz to 1 MHz |
| Power Supply Voltage | +24 V DC nominal |
| Current Consumption | Maximum 10 mA |
| Operating Temperature Range | –50 °C to +150 °C |
| Storage Temperature Range | –55 °C to +125 °C |
| Environmental Protection | IP65 rated (dust-tight and water-resistant) |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 5 g rms, 10 Hz to 2 kHz |
| Material | Stainless steel housing |
| Output Signal | Analog voltage proportional to target displacement |
| Cable Length | Standard 9.5-inch cable, extendable based on system configuration |
| Weight | 0.1 kg (0.22 lb) |
