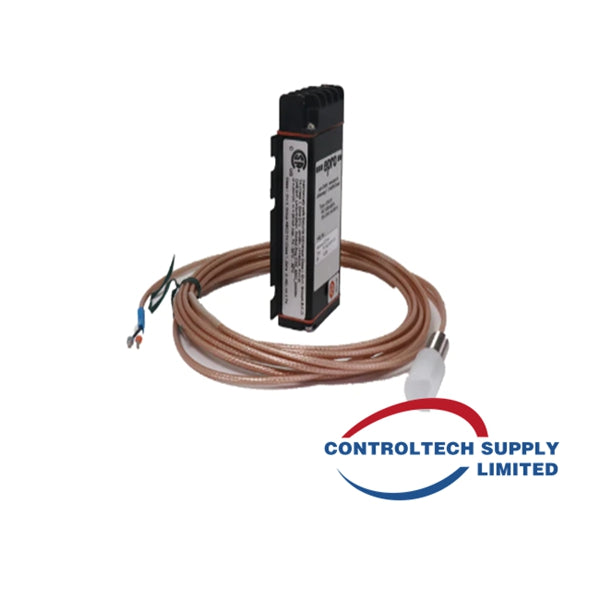

EPRO CON021+PR6423/10R-111 Eddy Current Sensor System

Product Description

The EPRO CON021+PR6423/10R-111 is a high-precision eddy current sensor system designed for monitoring critical turbomachinery. It accurately measures shaft dynamics, including displacement, position, and vibration, ensuring reliable performance in industrial applications.

Technical Specifications

• Product Type: Eddy Current Sensor System

• Manufacturer: EPRO

• Signal Converter (CON021):

• Frequency Range: 0 to 20,000 Hz

• Operating Temperature: -30°C to +100°C

• Power Supply: -23V to -32V

• Protection Class: IP20

• Certifications: ATEX, IECEx, CSA

• Material: LMgSi 0.5 F22 housing

• Weight: 120 grams

• Eddy Current Sensor (PR6423/10R-111):

• Sensor + 1m Cable: -35°C to +180°C

• Cable & Connector: -35°C to +150°C

• Measuring Range: ±1.0 mm static, 0 to 500 μm dynamic

• Linear Measurement Range: 2 mm (80 mils)

• Nominal Gap: 1.5 mm

• Initial Air Gap: 0.5 mm (20 mils)

• ISF (Incremental Scale Factor): 8 V/mm (±5%) from 0 to 45°C

• DSL (Deviation from Best Fit Line): ±0.025 mm at 0 to 45°C

• Minimum Shaft Diameter: 25 mm (0.79 inches)

• Target Material: Standard 42CrMo4 (AISI/SAE 4140) steel

• Protection Class: IP66 (IEC 60529 certified)

• Operating Temperature Range:

• Sensor Tip Material: PEEK (Polyether Ether Ketone)

• Sensor Case Material: Stainless steel

• Cable Material: PTFE (Polytetrafluoroethylene)

• Connector Material: Nickel-plated brass

• Cable Length: 8 meters (non-armored standard)
