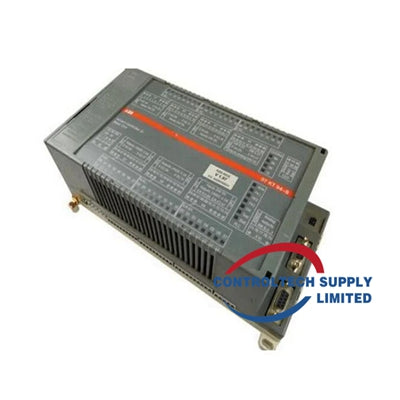

ABB 07KT98 J1 GJR5253100R3262 Robust Control Module

Product Description

• The ABB 07KT98 J1 GJR5253100R3262 is a robust control module designed for industrial automation systems.

• It supports reliable communication and control functions in harsh environments.

• Ideal for integration into ABB’s AC31 series and other automation platforms.

• Equipped with Ethernet and RS485 interfaces for flexible connectivity.

• Supports multiple industrial protocols including Modbus RTU and TCP/IP.

Technical Specifications

• Power Supply: 24 V DC (±10%)

• Operating Temperature: -25°C to +70°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95%, non-condensing

• Communication Ports: 1 × RS485, 1 × Ethernet (10/100 Mbps)

• Protocol Support: Modbus RTU, TCP/IP

• Data Transfer Rate: Up to 12 Mbps

• Isolation Voltage: 500 V AC

• Analog Inputs: 8 channels (0–5V, ±5V, ±10V, 0–20mA, 4–20mA, PT100)

• Analog Outputs: 4 channels (±10V, 0–20mA)

• Digital Inputs: 24 × DC 24V

• Digital Outputs: 16 × DC 24V

• Memory: 1000 kB user data, 1000 kB user program

• Storage Type: Flash EPROM, non-volatile RAM

• Real-Time Clock: Yes

• Dimensions: 240 mm × 230 mm × 170 mm

• Weight: 3.5 kg

• Protection Class: CE, UL certified

• Mounting: Screw terminals, pluggable

• Programming Software: AC1131
