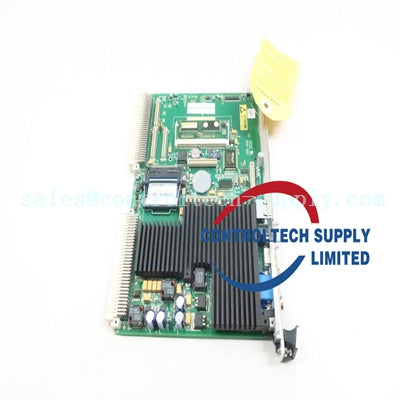

GE DS200SHVMG1B SCR High Voltage Card
GE DS200SHVMG1B SCR High Voltage Card
Manufacturer: GE
Product No.: DS200SHVMG1B
Product Type: SCR High Voltage Card
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The GE DS200SHVMG1B is an SCR High Voltage Card developed by General Electric as part of the Mark V control system series. It functions as a high-voltage M-frame interface board, playing a critical role in power conversion and control within GE drive and excitation systems.
Designed for seamless compatibility across a wide range of GE Mark V exciters and industrial drives, this board provides the electrical interface between the SCR bridge of the M-frame drive and the DCFB/SDCI power supply board, as well as the PCCA power connect card. Through this integration, the DS200SHVMG1B ensures accurate high-voltage signal transmission, reliable power regulation, and stable system operation in demanding industrial environments.
Its robust construction and proven Mark V architecture make it a dependable component for turbine control, motor drives, and excitation applications where precise high-voltage handling is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DS200SHVMG1B |
| Series | GE Mark V Control System |
| Board Function | SCR High Voltage Interface Card |
| Supported SCR Bridge Type | M-Frame SCR bridge assemblies |
| Operating Voltage Range | High-voltage control interface (up to 1,200 V typical system level) |
| Signal Interface Type | High-voltage gate and feedback signal conditioning |
| Power Supply Source | Via DCFB/SDCI power supply board |
| Interface Connections | SCR bridge, PCCA power connect card, DCFB/SDCI board |
| Insulation Rating | Industrial high-voltage isolation design |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Tolerance | 5% – 95% RH (non-condensing) |
| Mounting Type | Rack-mounted PCB within Mark V control cabinet |
| Application Voltage Class | Medium to high-power drive and excitation systems |
| Cooling Method | Natural or forced cabinet airflow |
