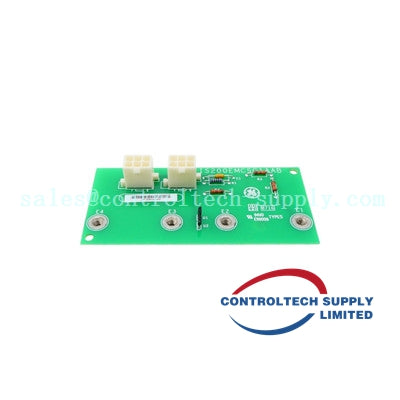

GE IS200EMCSG1AAB Exciter Multibridge Conduction Sensor Card

Product Description

• Part Number: IS200EMCSG1AAB

• Manufacturer: General Electric (GE)

• Country of Manufacture: United States of America (USA)

• Operating Temperature: -30 to 65°C

• Connectors: Two six-plug connectors

• Dimensions: 4.35 in (Length) × 2 in (Width)

• Number of Conduction Sensors: 4 (E1–E4)

• Product Type: Exciter Multibridge Conduction Sensor Card

• Series: Mark VI

• Availability: In Stock

Functional Description

• IS200EMCSG1AAB is an Exciter Multibridge Conduction Sensor Card designed by GE as part of the Mark VI control system.

• Used in exciter systems to monitor conduction behavior, detect abnormalities, and maintain stable system performance.

• Features advanced sensing technology, enabling precise measurement and analysis of conduction across multiple points in the exciter.

• Plays a critical role in ensuring exciter reliability by providing timely feedback for system control and protection.

Features

• Four Conduction Sensors (E1–E4):

• Positioned along the bottom edge of the board for comprehensive conduction monitoring.

• Independent Sensor Circuits (U1 and U2):

• Located between sensors E2 and E3.

• Provide redundancy and improved accuracy through independent monitoring channels.

• Power Supply Connectivity:

• Equipped with two six-plug connectors that deliver stable power to the card.

• Ensures continuous operation of all sensing and monitoring functions.
