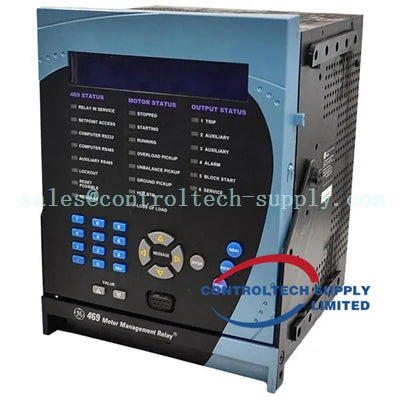

GE Multilin 469-P5-HI-A20-T Motor Protection Relay

Description

• Designed for medium-voltage motor protection, preventing overcurrent, undervoltage, ground faults, and thermal overloads

• Utilizes advanced motor thermal modeling to enhance reliability and safety, reducing maintenance costs

• Suitable for industrial equipment, power systems, oil & gas, and wastewater treatment applications

Technical Specifications

• Model: 469-P5-HI-A20-T

• Phase Current: 5A CT secondaries

• Control Power:

• DC: 90–300V

• AC: 70–265V @ 48–62Hz

• Analog Output: 4–20mA

• Communication Protocol: Modbus RTU / Half Duplex

• Motor Thermal Modeling Features:

• RTD biasing

• Motor cooling time constants

• Start inhibit & emergency restart

• Unbalance biasing

• Overload curves

• Display & Interface:

• LCD display

• LED indicators

• Touch keypad

• Communication port

• Dimensions & Weight:

• Size: 196mm × 216mm × 184mm

• Weight: 2kg
