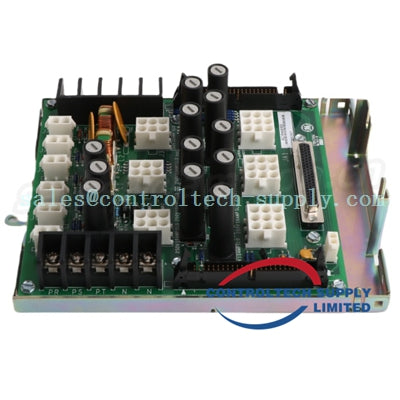

GE IS200JPDMG1ADC - Printed Circuit Board

Description

• The GE IS200JPDMG1ADC is a Jumper Power Distribution Card designed for the Mark VIe Turbine Control System2.

• It distributes 28 VDC power to various system components, ensuring stable and reliable operation in industrial applications.

• Features DIN-rail mounting and fuse protection for all outputs2.

• Supports redundant power supplies and maintains three distinct power buses, with jumper configurations available.

Technical Specifications

• Manufacturer: General Electric

• Series: Mark VIe

• Model Number: IS200JPDMG1ADC

• Functional Abbreviation: JPDM

• Input Voltage: 24-30 VDC (nominal 28 VDC)

• Output Channels: 8 independent channels

• Output Current: Up to 10 A per channel, 20 A total

• Mounting: DIN-rail

• Protection: Fuse protection on all outputs, electronic current limiting

• Number of Plug Connectors: 13

• Maximum Input Current: 35 Amps

• Operating Temperature: -30°C to +65°C (-22°F to +149°F)

• Dimensions: 165.1 mm × 178 mm × 75 mm (6.5 in × 7.0 in × 2.95 in)

• Weight: 0.45 kg (1.0 lb)
