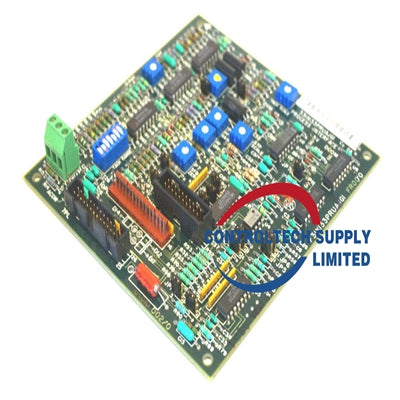

GE IS200JPDMG1ACC Power Distribution Card

Description

• The GE IS200JPDMG1ACC is a Power Distribution Card designed for the Mark VI Turbine Control System.

• It efficiently distributes protected control power to I/O packs, ensuring stable and reliable operation in industrial environments.

• Features built-in short circuit protection, robust fuse protection, and support for hazardous locations.

Technical Specifications

• Model Number: IS200JPDMG1ACC

• Type: Power Distribution Card

• Power Source: Operates on a 125V DC battery system. Supports 120/240V AC when used with a power converter.

• Input Voltage: Accepts 28V DC.

• Maximum Current: Handles up to 35 Amps.

• Connections:

• Equipped with J1 and J1X connectors for daisy-chaining multiple boards.

• Uses a terminal block for secure wiring.

• Components:

• Includes 24 varistors and 24 two-position plugs, arranged in three rows of eight.

• Short Circuit Protection:

• Designed for gas turbines with a separate power source for ignition transformers.

• Provides short circuit protection of 20 A or less.

• Mounting Strategy: Supports DIN-rail mounting.

• Installation: Designed for panel installation.

• Operating Temperature: Functions within -40°C to +70°C (-40°F to +158°F).

• Certifications:

• Suitable for hazardous locations: Class 1 Division 2 and ATEX zones.

• Meets UL/ATEX HazLoc requirements.

• Protection Features: Fuse protection for all outputs.

• Size & Weight: 200 mm × 150 mm × 50 mm, 0.5 kg
