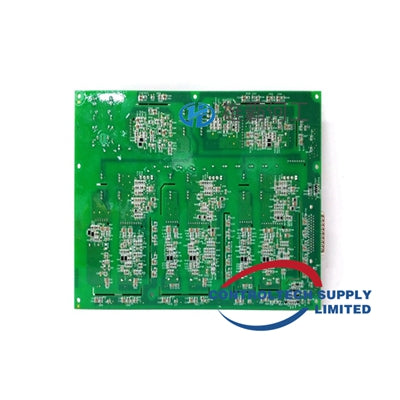

GE IS200JPDEG1AAA - DC Battery Power Distribution Board

Specifications

• Part Number: IS200JPDEG1AAA

• Manufacturer: General Electric

• Series: Mark VIe

• Product Type: DC Battery Power Distribution Board

• Number of Channels: 24

• Input Isolation: 1500 V

• AC Voltage Rejection: 60 V RMS

• Voltage Range: 18 - 32 VDC

• Mounting: DIN-rail mounting

• Technology: Surface mount

• Operating Temperature: 0 to 60°C

• Size: 16.51 cm high × 17.08 cm wide

• Availability: In Stock

• Country of Origin: United States

• Manual: GEH-6421H

Functional Description

• Receives DC power from a battery or power supply and distributes it to terminal boards and system loads

• Supports a floating DC bus centered on earth via resistors

• Provides voltage feedback through PPDA for ground fault detection

• Accepts inputs from two power supplies

• Operates at 24 VDC or 48 VDC

• Integrated into the PDM system feedback via the PPDA I/O pack

• Limited by current capacity due to conventional board construction

• Does not supply power to bulk 500W – 24 V input/28 V output power supplies

Compatibility

• Compatible with feedback signal P1/P2 connectors on JPDB, JPDF, JPDS, and JPDM

• Interfaces with PPDA I/O pack for real-time adjustments

• Connects to components such as sensors and power supply elements

Installation

• Mounted vertically on a metal bracket in a PDM cabinet

• Equipped with 50-pin diagnostic connectors at the top and bottom

• Grounded through the sheet metal bracket to system FE

• Dual diagnostic connector setup allows monitoring and diagnosis without removal
