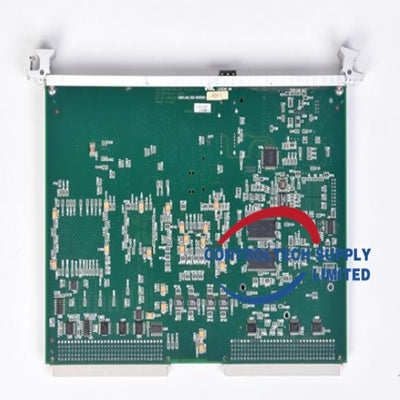

GE DS200SIOBH1ABA - VME STAND I/O CARD/C

Product Description

The GE DS200SIOBH1ABA is a VME Stand I/O Control Board used in the Mark V turbine control system by General Electric. It facilitates communication between the turbine control processor and various input/output signals, ensuring precise control and monitoring within the system. Its configurable jumpers and switches allow flexible adaptation to application-specific requirements, while its rugged design ensures reliability in industrial environments.

Specifications

• Part Number: DS200SIOBH1ABA

• Manufacturer: General Electric

• Series: Mark V

• Product Type: VME Stand I/O Card

• Jumpers: 20 total

• Switch Blocks: 3 blocks, each with 6 switches (18 switches total)

• LEDs: 1 indicator LED

• Connectors: 1 × 40-pin connector

• Jumper Configuration: Factory-set; some jumpers are fixed in one position

• Replacement Procedure:

• Match jumper positions with the old board for consistent behavior

• Remove screws and carefully extract old board from the drive

• Avoid contact with other components during removal

• Place old board on a static protection bag

• Unseal and remove new board from its protective bag

• Place new board beside the old one for switch alignment
