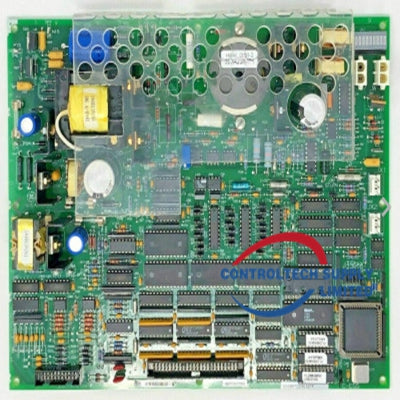

GE DS200SDCIG1AHB DC Power Supply & Instrumentation Board

Product Description

The GE DS200SDCIG1AHB is a DC Power Supply and Instrumentation Board used in General Electric’s Mark V turbine control systems. It is designed to distribute control-level DC power to other circuit boards within the drive and provide key instrumentation feedback. This board plays a vital role in monitoring system parameters and ensuring reliable operation of the overall control system.

Technical Specifications

• Part Number: DS200SDCIG1AHB

• Manufacturer: General Electric

• Series: Mark V

• Board Type: DC Power Supply and Instrumentation Board

• Input Voltage: 125 VDC nominal

• Output Channels:

• Multiple regulated DC outputs for internal board supply

• Connectors:

• Multiple plug connectors for inter-board connections

• Ribbon cable interface to daughter boards

• Diagnostic Features:

• Status LEDs for power and operational states

• Voltage monitoring circuits for input and output

• Instrumentation Functions:

• Provides analog and digital signal feedback

• Monitors power supply performance and system voltages

• Mounting: Bolts into drive rack with alignment pins

• Configuration:

• Includes configurable jumpers and test points

• Cooling Requirements: Convection cooled; requires proper airflow within enclosure

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: –40°C to +85°C (–40°F to +185°F)

• Humidity: 5% to 95% non-condensing

• Weight: 1.2 kg (2.6 lbs)
