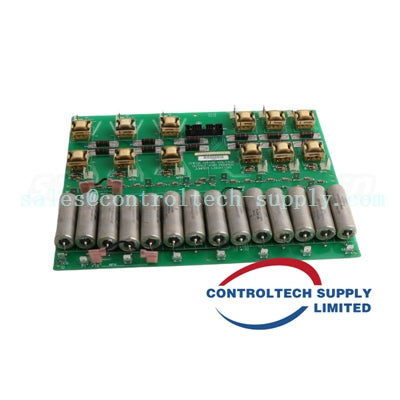

GE DS200PCCAG7ACB - DC Power Connect Board

Description

• The GE DS200PCCAG7ACB is a DC Power Connect Board designed for the Mark V series of GE Industrial Control Systems.

• It serves as an interface between the DC200 drive and the SCR power bridge, ensuring efficient power distribution.

• The board is non-repairable, meaning that if it malfunctions, a full replacement is required.

Technical Specifications

• Manufacturer: GE Industrial Control Systems

• Series: DC2000

• Part Number: DS200PCCAG7ACB

• Functional Abbreviation: PCCA

• Voltage Compatibility: <600 V rms AC

• Frame Style: C or G frame

• Power Supply Compatibility: SDCI power supply board

• Snubber Circuits: Supports both AC and DC snubbers

• Bus Transformer Compatibility: Works with separate or common bus transformers

• Line Protection: Compatible with line fuses and reactors

• Adjustable Hardware Jumpers:

• Total: 4 jumpers

• JP1 & JP2: Connected to stab terminals P3-P10

• WP3 & WP4: Used to conjoin P2A to P2B and P1A to P1B

• Dimensions: 30.0mm × 128.4mm × 160.0mm (W × H × D)

• Weight: 0.32 kg
