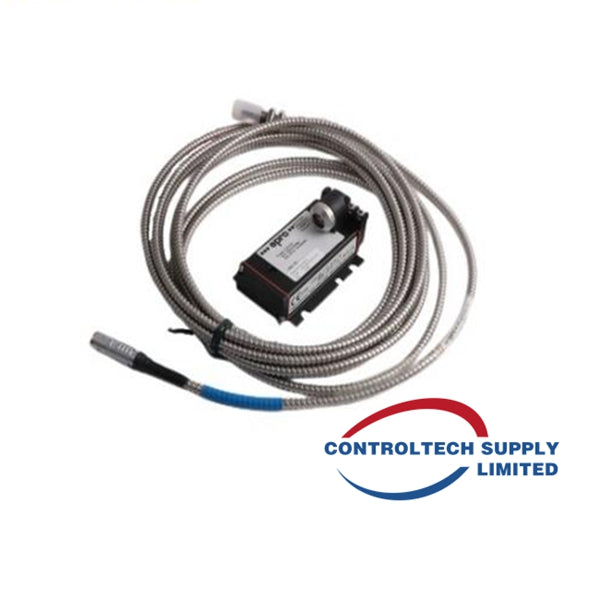

EPRO CON021+PR6423/002-130 Eddy Current Sensor

Description

CON021 Signal Converter

Functionality: Converts sensor signals for monitoring and analysis

Frequency Range: 0 to 20,000 Hz

Rise Time: <15 μs

Operating Temperature: -30°C to +100°C

Protection Class: IP20   Power Supply:

• Voltage Range: -23V to -32V

• Output Range: -4V to -20V or -2V to -18V

• Material: Housing made of LMgSi 0.5 F22

• Weight: 120 g

• Mounting: 4 screws (M5x20)

• Connections:

• Transducer: Self-locking Lemo-Plug

• Supply/Output: Screw terminal type (max. 1.5mm² wire)

PR6423 Displacement Sensor

Measurement Range: 2 mm

Initial Air Gap: 0.5 mm

Sensitivity: 8 V/mm ± 5%

Operating Temperature:

• Sensor: -35°C to 180°C

• Cable & Connector: -35°C to 150°C

• Protection Class: IP66   Material:

• Sensor Tip: PEEK (Polyether Ether Ketone)

• Case: Stainless Steel

• Cable: PTFE (Polytetrafluoroethylene)
