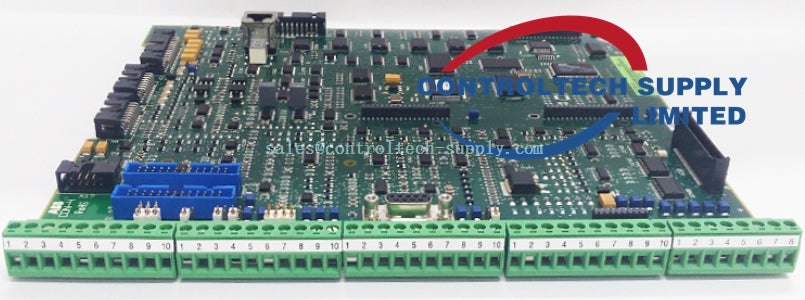

ABB SDCS-CON-1 3BSE006196R1 Central Control Board
ABB SDCS-CON-1 3BSE006196R1 Central Control Board
Manufacturer: ABB
Product No.: SDCS-CON-1 3BSE006196R1
Product Type: Central Control Board
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB SDCS-CON-1 (3BSE006196R1) is a central control and processing board designed for ABB DC drive systems, mainly used in the DCS500 and DCS600 series. It functions as the main CPU of the drive, executing control algorithms, processing feedback signals, and coordinating all internal control and communication tasks. The board ensures stable motor operation, precise speed and torque regulation, and reliable communication between the drive, I/O modules, and higher-level control systems. Its industrial-grade design allows continuous operation in demanding environments such as metals, paper, power generation, and heavy machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Control Board / CPU Module |
| Model | SDCS-CON-1 |
| ABB Part Number | 3BSE006196R1 |
| System Compatibility | ABB DCS500 and DCS600 DC drive systems |
| Control Function | Motor control, signal processing, drive supervision, and communication management |
| Supply Voltage | 24 V DC |
| Typical Current Consumption | Approx. 2 A |
| Control Signal Output | 0 to 10 V DC |
| Communication Interfaces | RS-485, fieldbus interfaces via option modules (e.g., Modbus, Profibus, CANopen) |
| Data Processing Cycle | ≤ 15 ms |
| Protection Class | IP20 |
| Mounting Type | Control rack or drive frame mounting |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | Approx. 250 × 180 × 30 mm |
| Weight | 0.3 kg |
