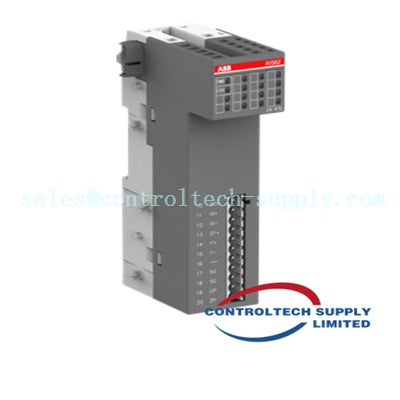

ABB AI562 1TNE968902R1102 Analog Input Module

General Information

• Extended Product Type: AI562

• Product ID: 1TNE968902R1102

• ABB Type Designation: AI562

• EAN: 6943747170169

• Catalog Description: Analog input module. 2 AI: RTD (AI562)

• Long Description: AI562: S500-eCo Analog input module. 2 AI: RTD. 2..3-wire

Dimensions

• Product Net Weight: 0.121 kg

• Product Net Depth / Length: 135 mm

• Product Net Height: 74 mm

• Product Net Width: 34 mm

• Gross Weight: 0.222 kg

• Package Level 1 Depth / Length: 93 mm

• Package Level 1 Height: 63 mm

• Package Level 1 Width: 170 mm

• Package Level 1 Units: 1 carton

Technical

• Function: 2 AI: RTD

• Number of Analog Configurable I/Os: 0

• Analog Inputs: 2

• Input Signal: RTD

• Resolution: Analog Input 15 bit

• Connection Type: Pluggable

• Degree of Protection: Housing IP20
