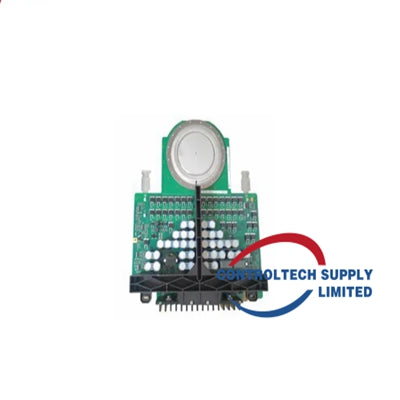

ABB 5SHY6545L0001 IGCT MODULE

Product Description

The ABB 5SHY6545L0001 is an Asymmetric Integrated Gate-Commutated Thyristor (IGCT) Module designed for high-power and high-voltage industrial applications. It provides reliable and efficient switching performance for power conversion systems such as inverters, drives, and converters. The module features robust construction, high surge current capability, and low on-state losses, ensuring long-term operational stability even in demanding conditions.

Technical Specifications

• Type: Asymmetric IGCT Module

• Voltage Rating (VDRM): 4500 V

• Current Rating (ITGQM): 6500 A

• Mounting Force: 40 kN

• Typical Diameter: 91 mm

• Design: Press-pack configuration for reliable thermal and electrical contact

• Cooling Method: Conduction-cooled

• Application: High-power converters, traction systems, industrial drives, and power grid converters

Additional Information

• Product Type: Power Semiconductor Device

• Country of Origin: Switzerland

• Gross Weight: Approx. 3.0 kg

• Package Type: Press-pack

• Minimum Order Quantity: 1 piece

• Operating Category: High-voltage power electronics
